2.0 ATA hard-shell hyperbaric chamber · Seated, one or two people
One body. One or two people. Two exterior designs.
VISTA is a 2.0 ATA hard-shell chamber for one or two people, built as one integrated body in an 1,850 × 1,400 × 2,000 mm footprint, about 860 kg. Choose a single seat or a two-person sofa, and one of two shell contours — Rounded or Defined — before production.
- Pressure
- 2.0 ATA
- Occupancy
- 1 or 2 people, seated
- Size L × W × H
- 1,850 × 1,400 × 2,000 mm
- Chamber weight
- ≈ 860 kgexcl. main unit
- Narrowest width
- 1,400 mmcomplete chamber body
- Main unit
- 10L all-in-onewith air conditioning
Video
Watch VISTA — right here.
Press play to watch our VISTA walkthrough without leaving this page. The player is YouTube's own, loaded in privacy-enhanced mode only when you press play.
The only two-person current model
Configure VISTA for one person or with a two-person sofa. ATLAS, a larger two-person design, is a completed engineering project, not a catalogue model.
Two shell contours
Rounded — a fuller, continuous curve — or Defined, echoing the design language of LUMEN. Different contours, not different paint colours.
Lighter than LUMEN in the same footprint
About 860 kg against LUMEN's 1,000 kg, because the body is integrated and has no modules or covers.
Three-panel infrared available
VISTA and LUMEN are the two models that can carry the three-panel infrared light; NAPA massage seating, 20L + BIBS and PEMF are also optional.
More videos on our YouTube channel. Optional equipment may be shown.
Gallery

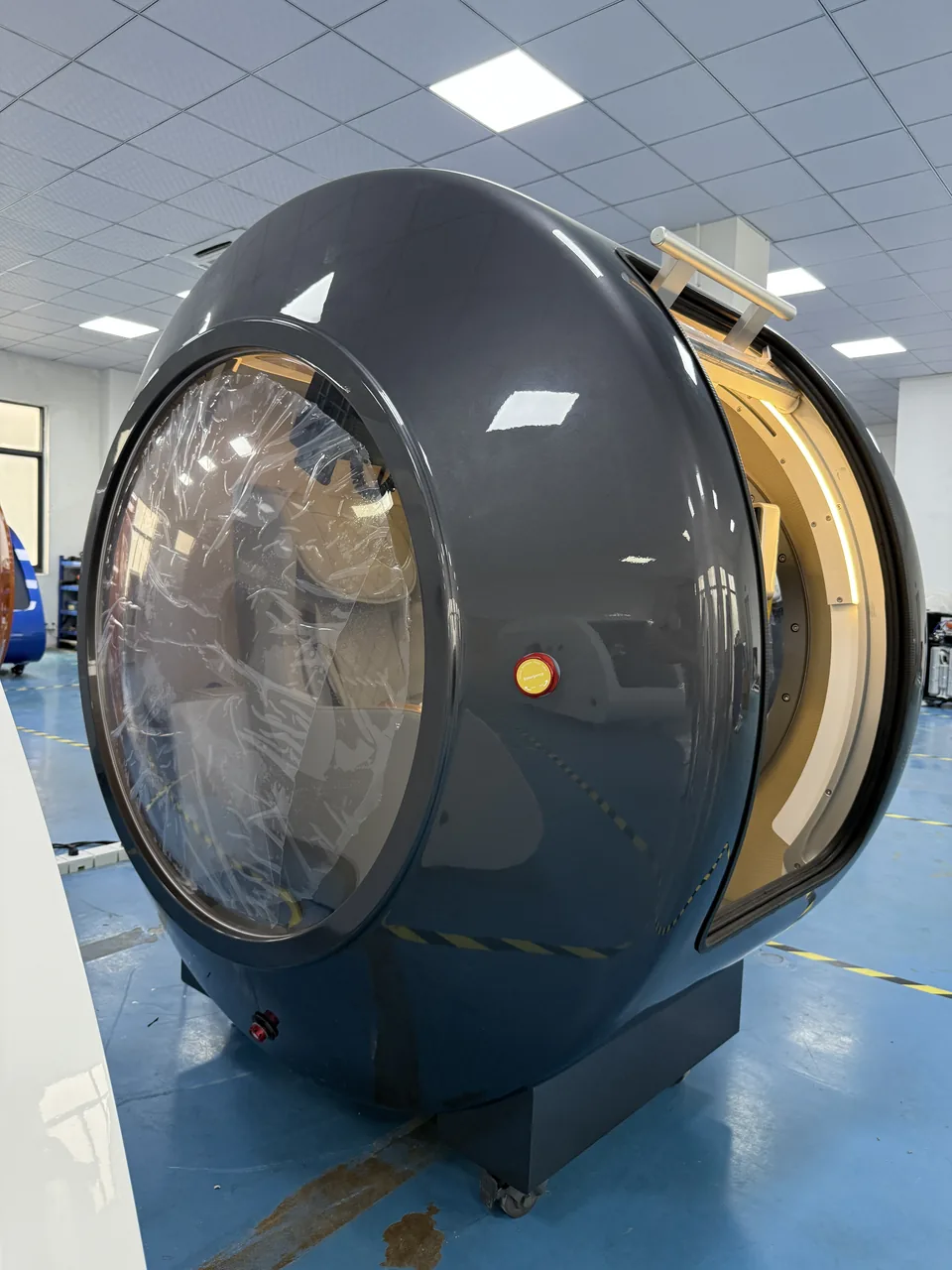

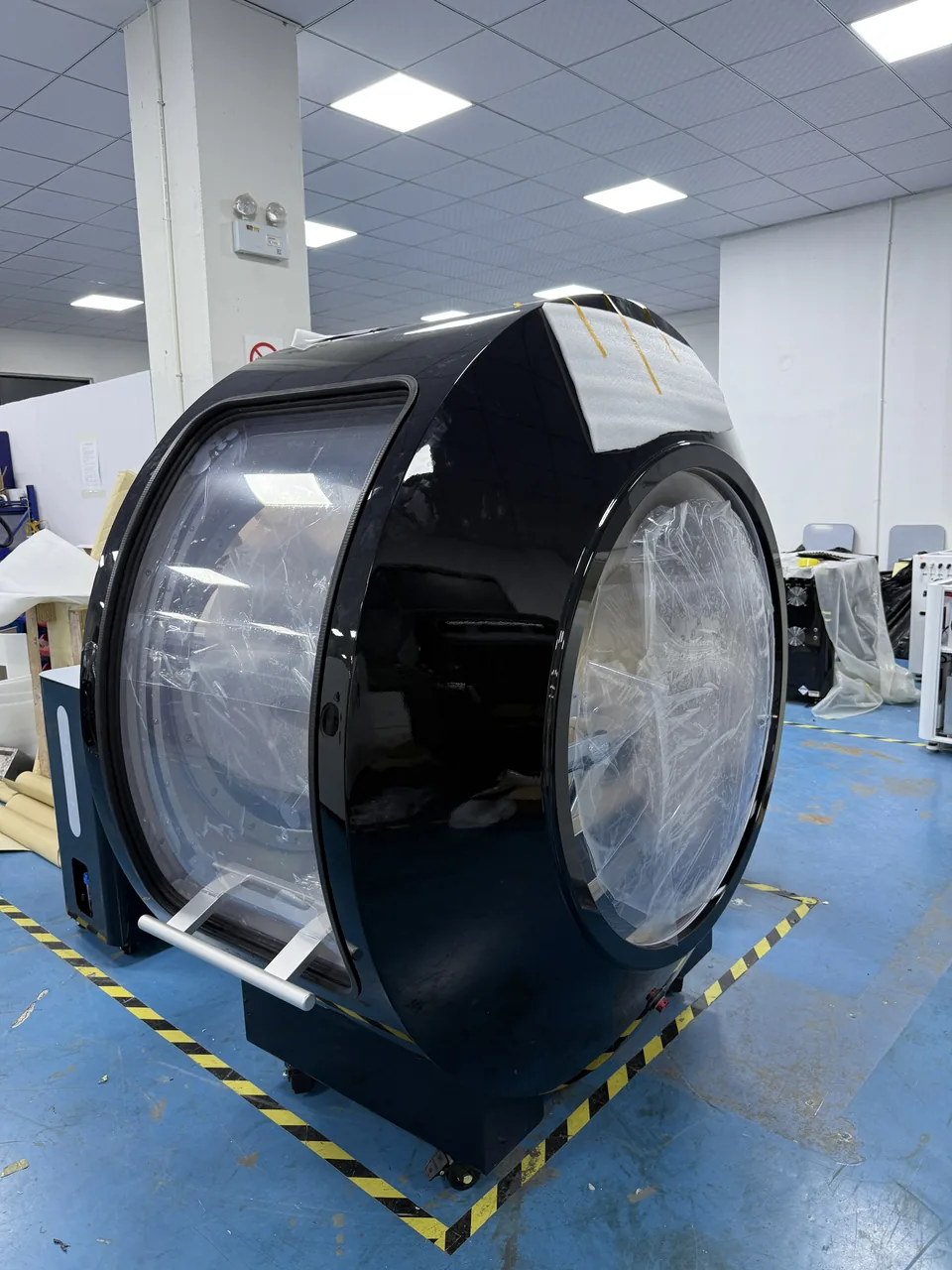

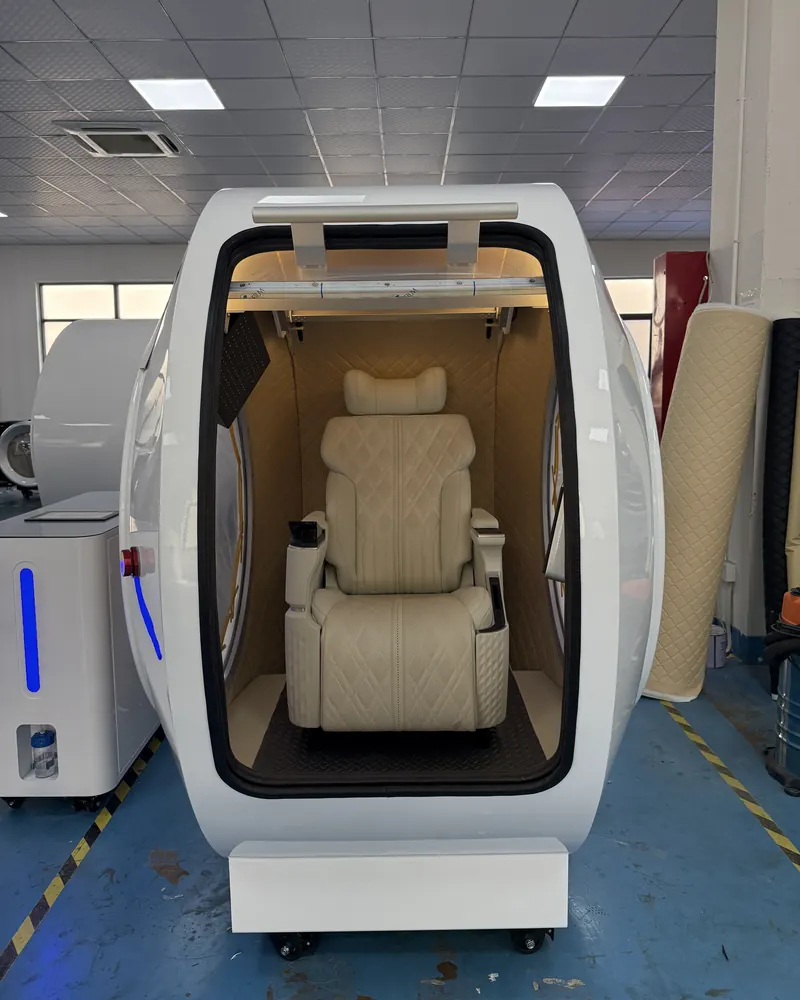

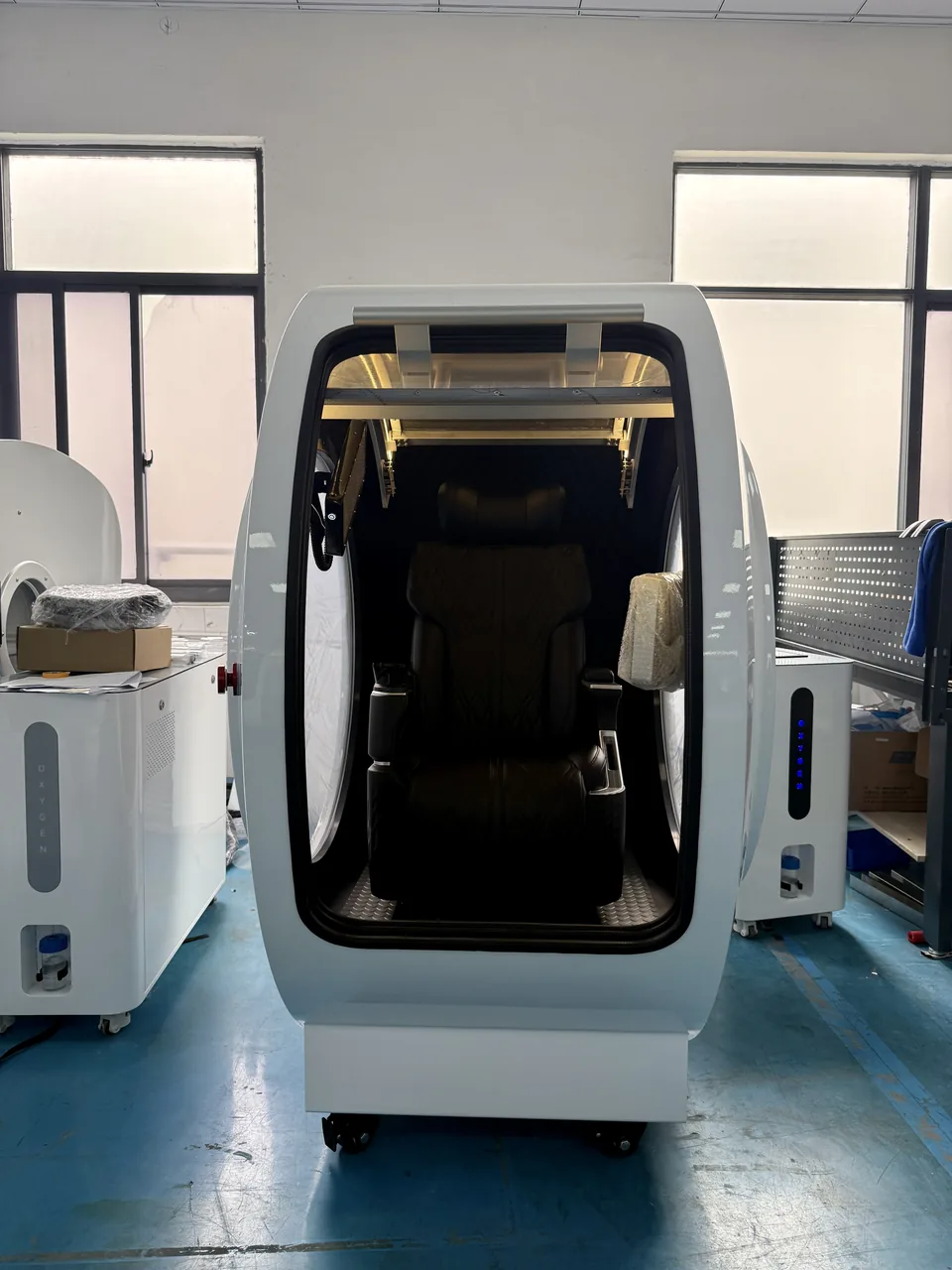

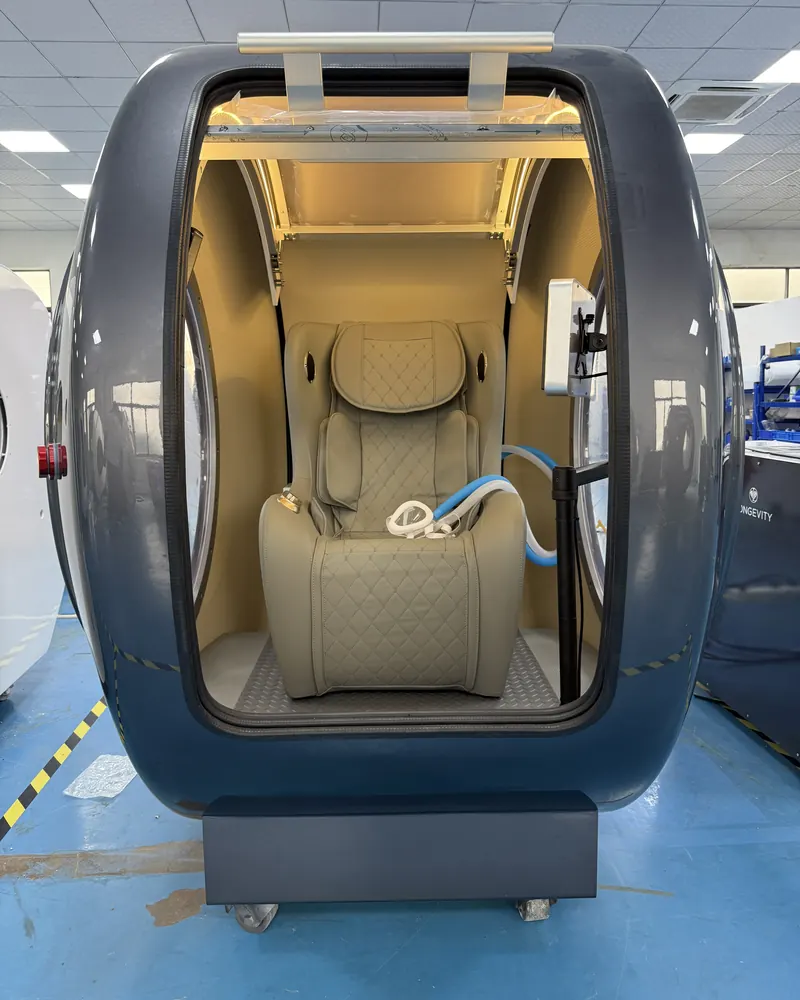

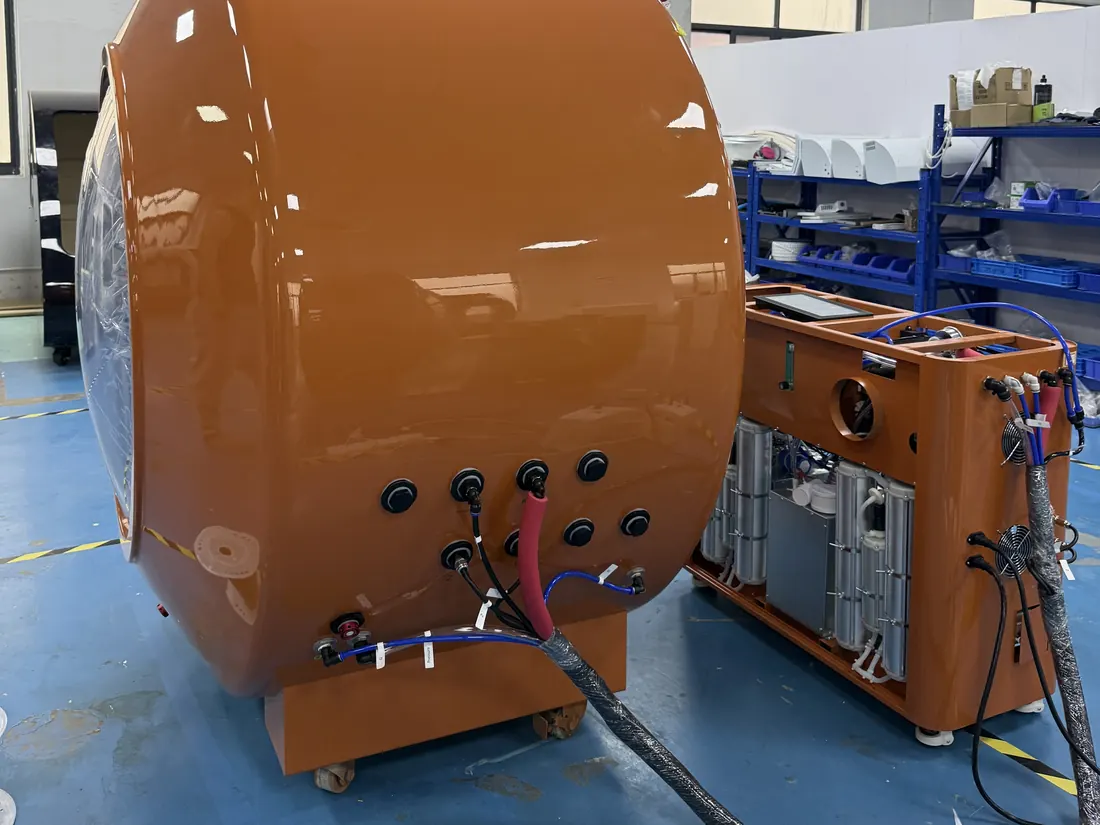

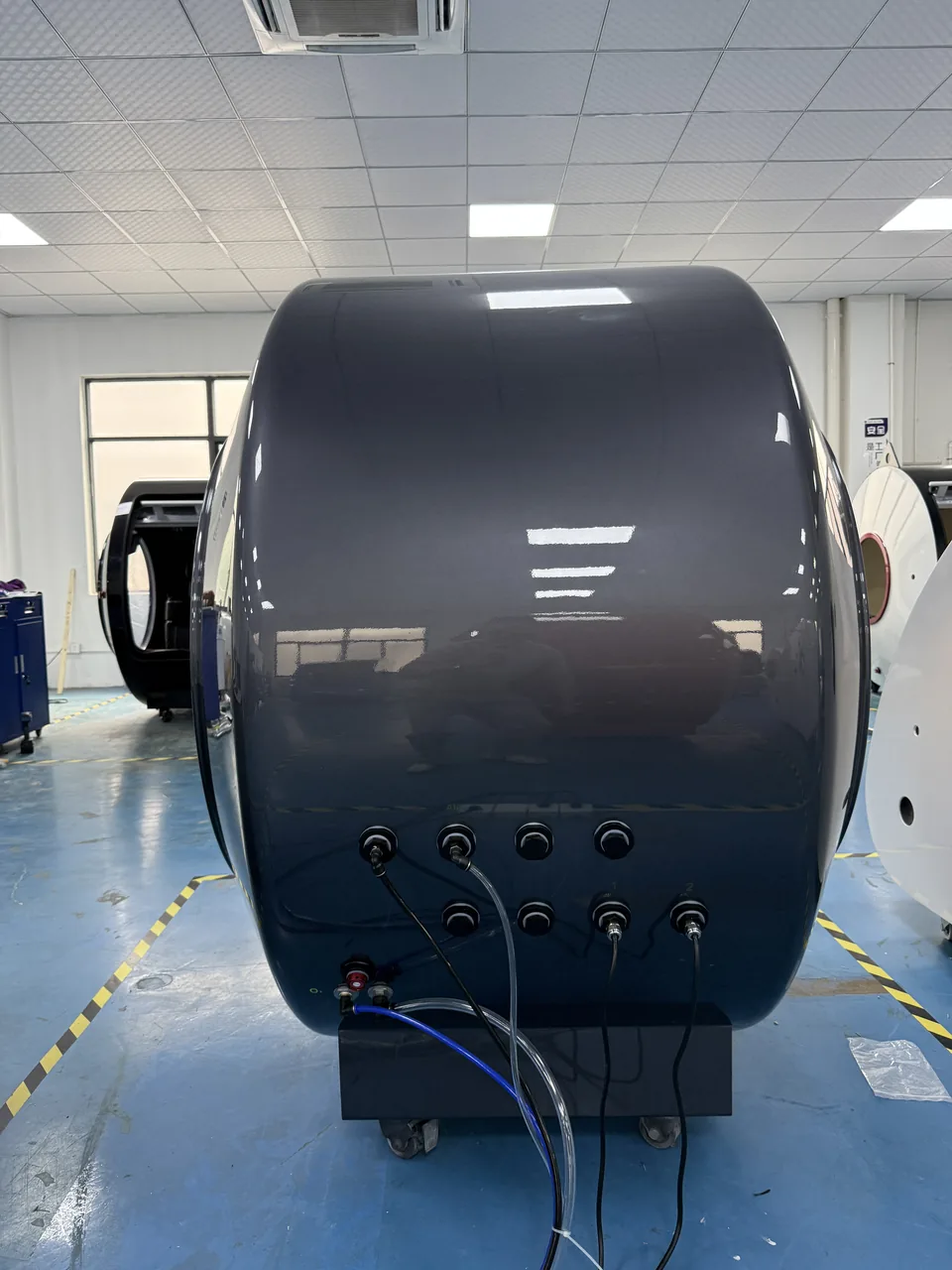

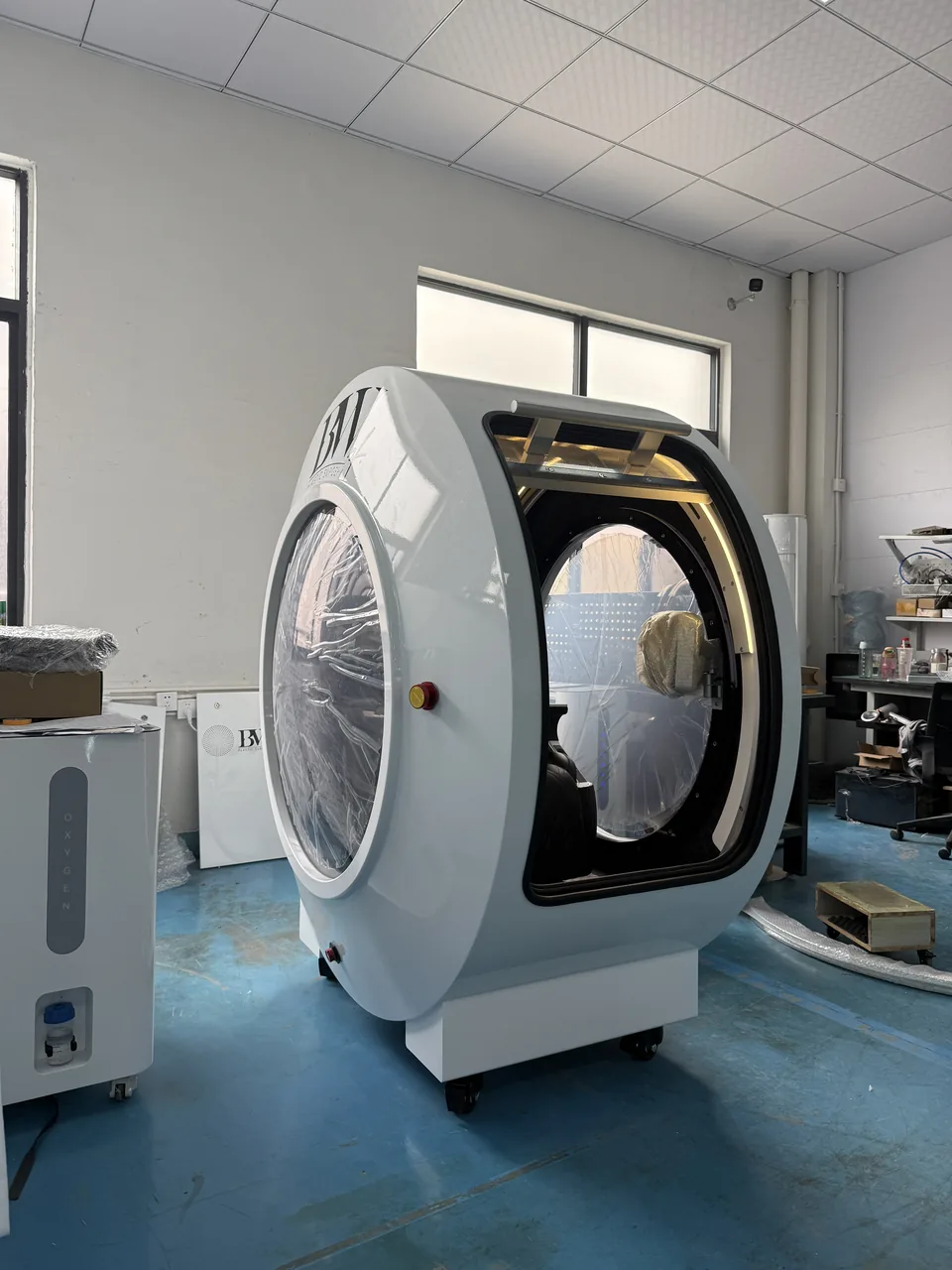

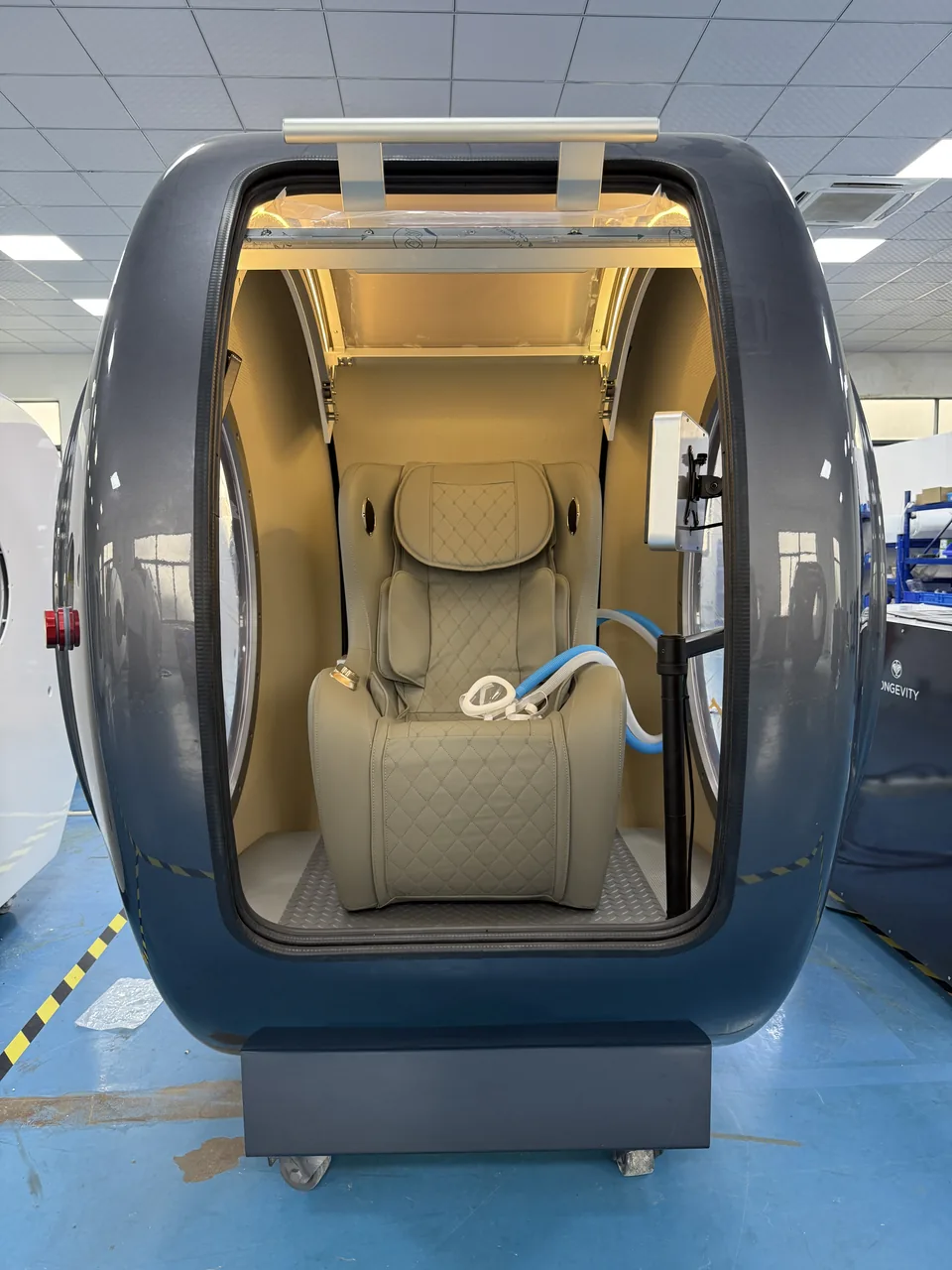

VISTA: exterior, interior, controls — and on the factory floor.

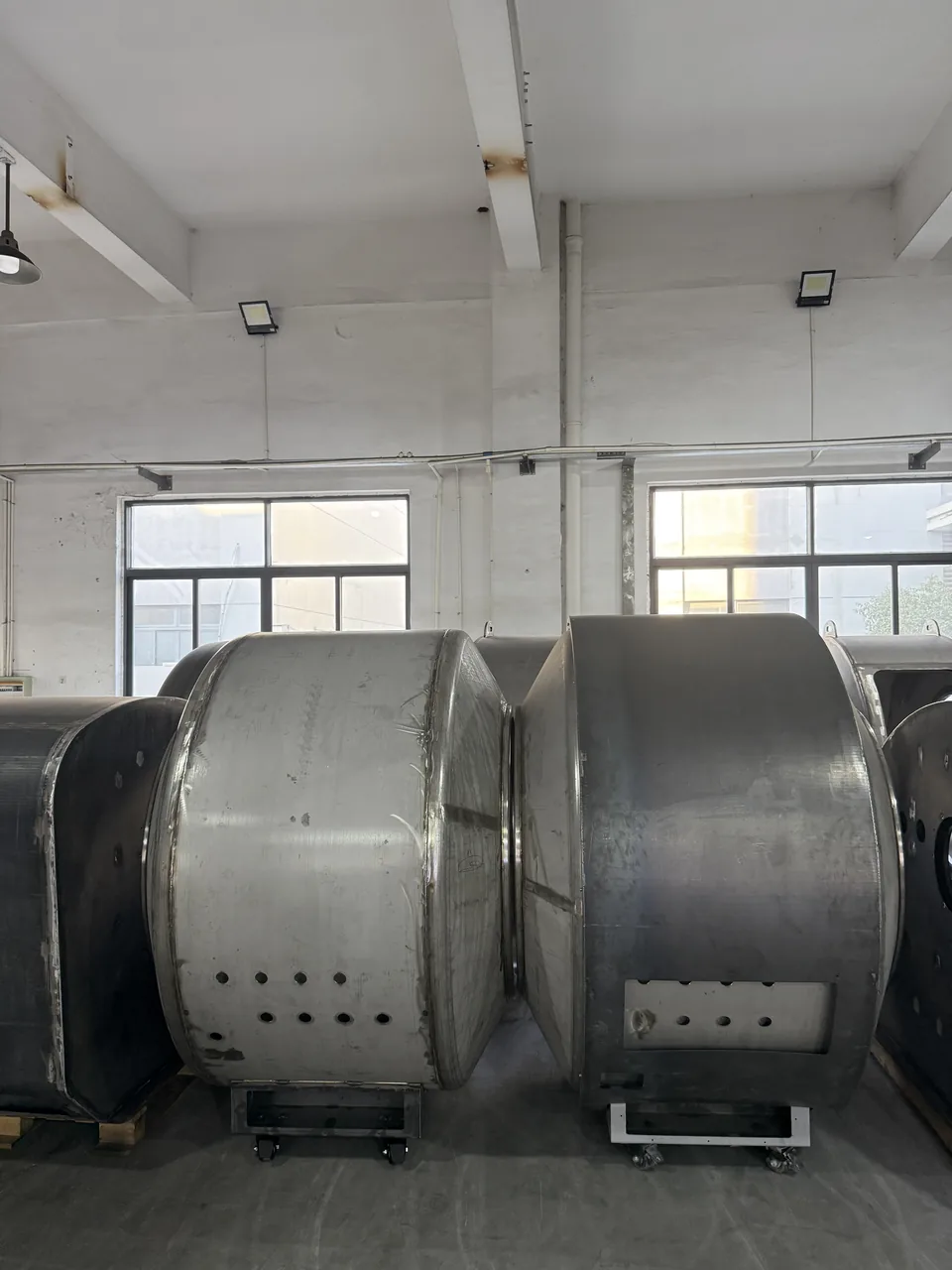

Factory photographs and brochure images, from the finished chamber to the raw steel shell. Every caption says what it is, and optional equipment is labelled. Select a photo to enlarge it.
Factory clips
Short clips filmed in our factory. Sound removed; nothing loads until you press play.
Access & site planning
Will it reach the room?
VISTA cannot be dismantled into side modules. Plan the route for the complete body.
Widths are body measurements from the model documentation — not guaranteed doorway clearances. Height, turns, stairs, lifts, floor loading and handling space are reviewed for each project.
What to send us before you order
- Photos and measurements of each narrow point on the route — doors, corridors, turns, stairs
- Lift door width and height, cabin width and depth, rated load
- Floor level and floor loading for upper floors

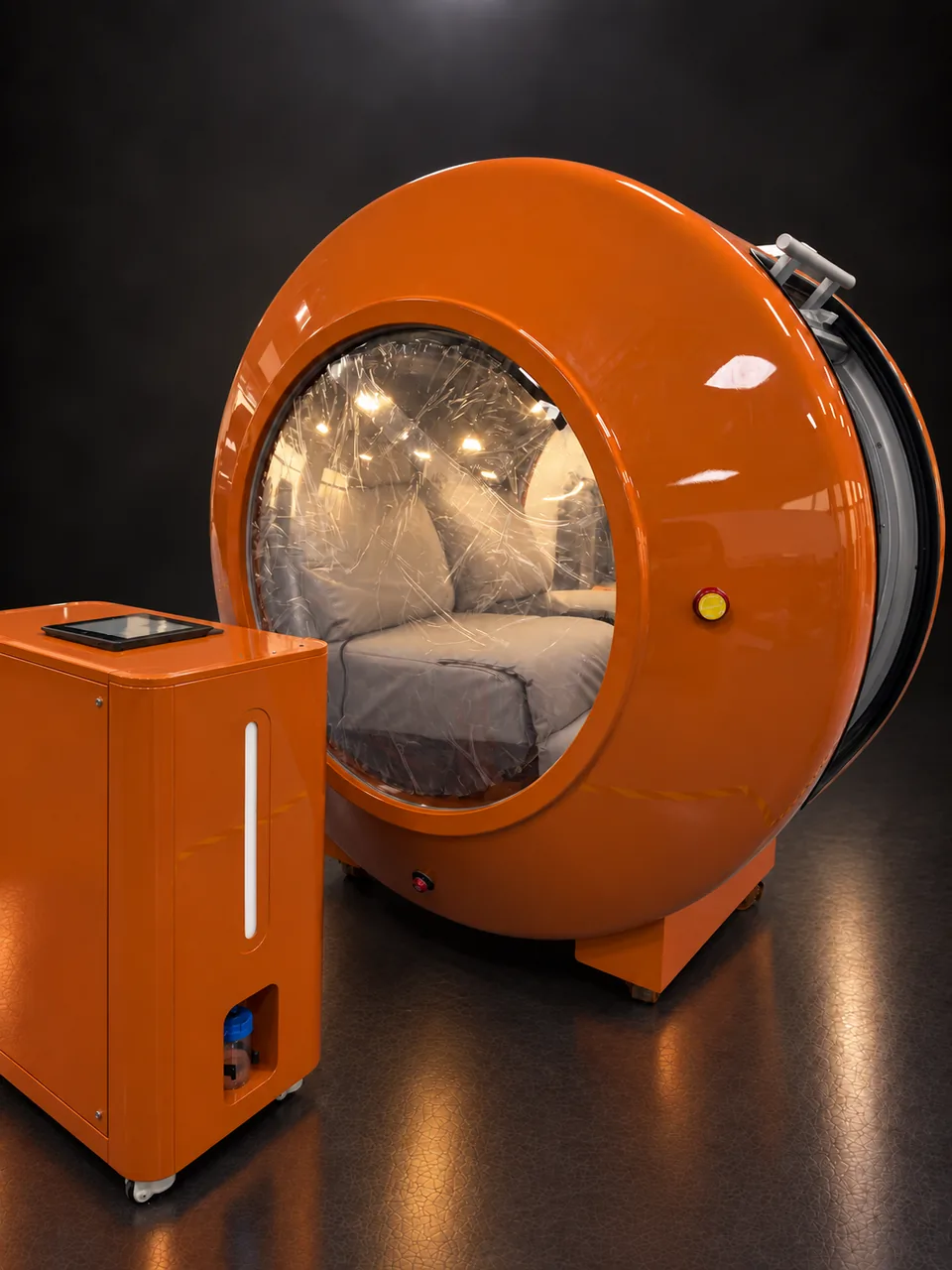

- Room size and where the separate main unit can stand
- Your power supply: 110 V / 60 Hz or 220 V / 50 Hz
Standard and optional
What every VISTA includes — and what you can add.
Many photographs show optional equipment. This is the line between the two, from the current model documentation and the five-model configuration comparison. Options are quoted with the chamber; combinations and the power version are confirmed by our engineers.
Included with every chamber
- 10L all-in-one main unitOxygen concentrator, air compressor and air conditioning in one cabinet.Standard
- Air conditioningIntegrated in the main unit.Standard
- Standard interior and sofaBase wall finish and seat. ORION COMPACT: built-in sofa with adjustable backrest.Standard
- Warm-white interior LEDInterior ambient lighting.Standard

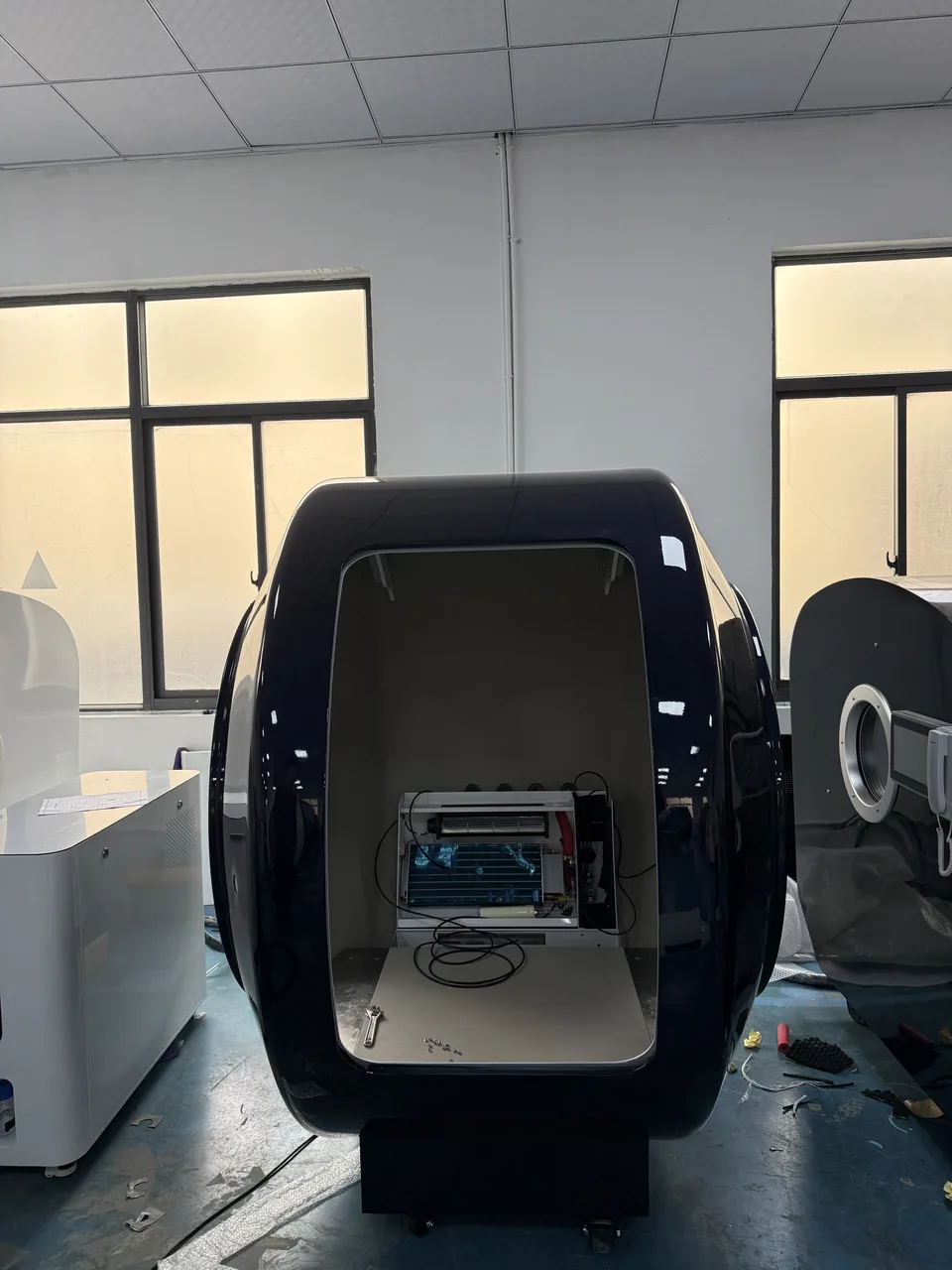

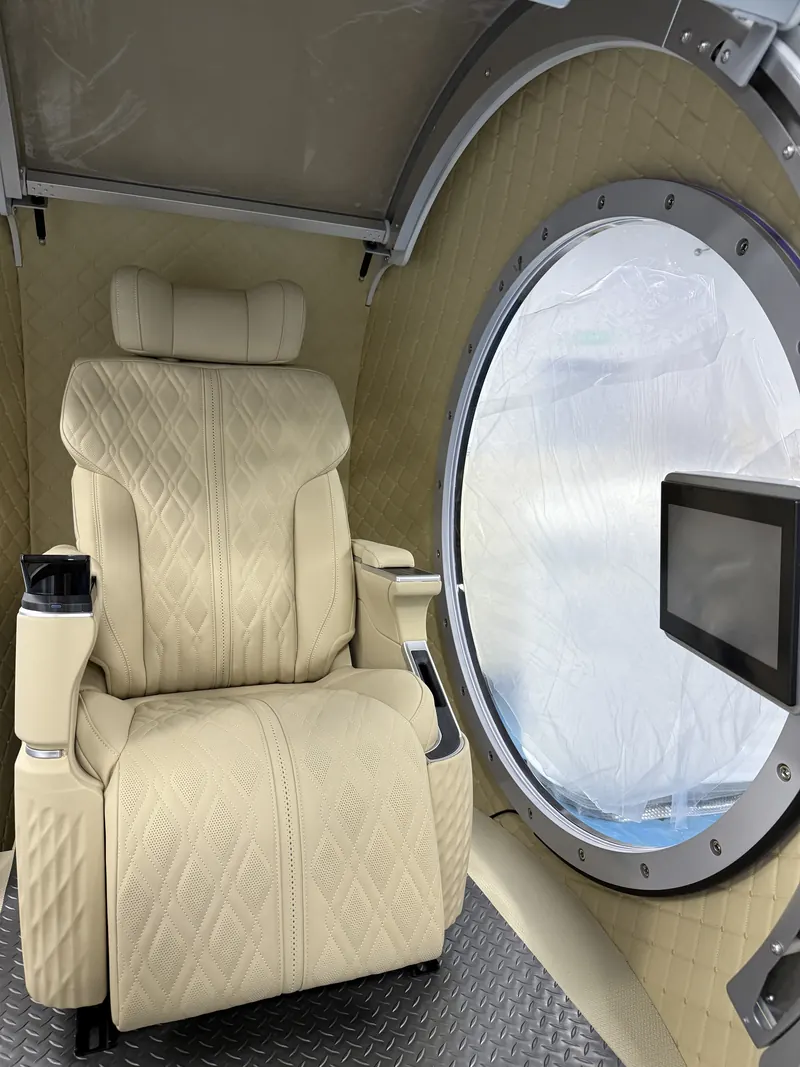

- Two touch control panelsOne inside, one outside.Standard
- Two intercom unitsOne inside, one outside.Standard
Available to add

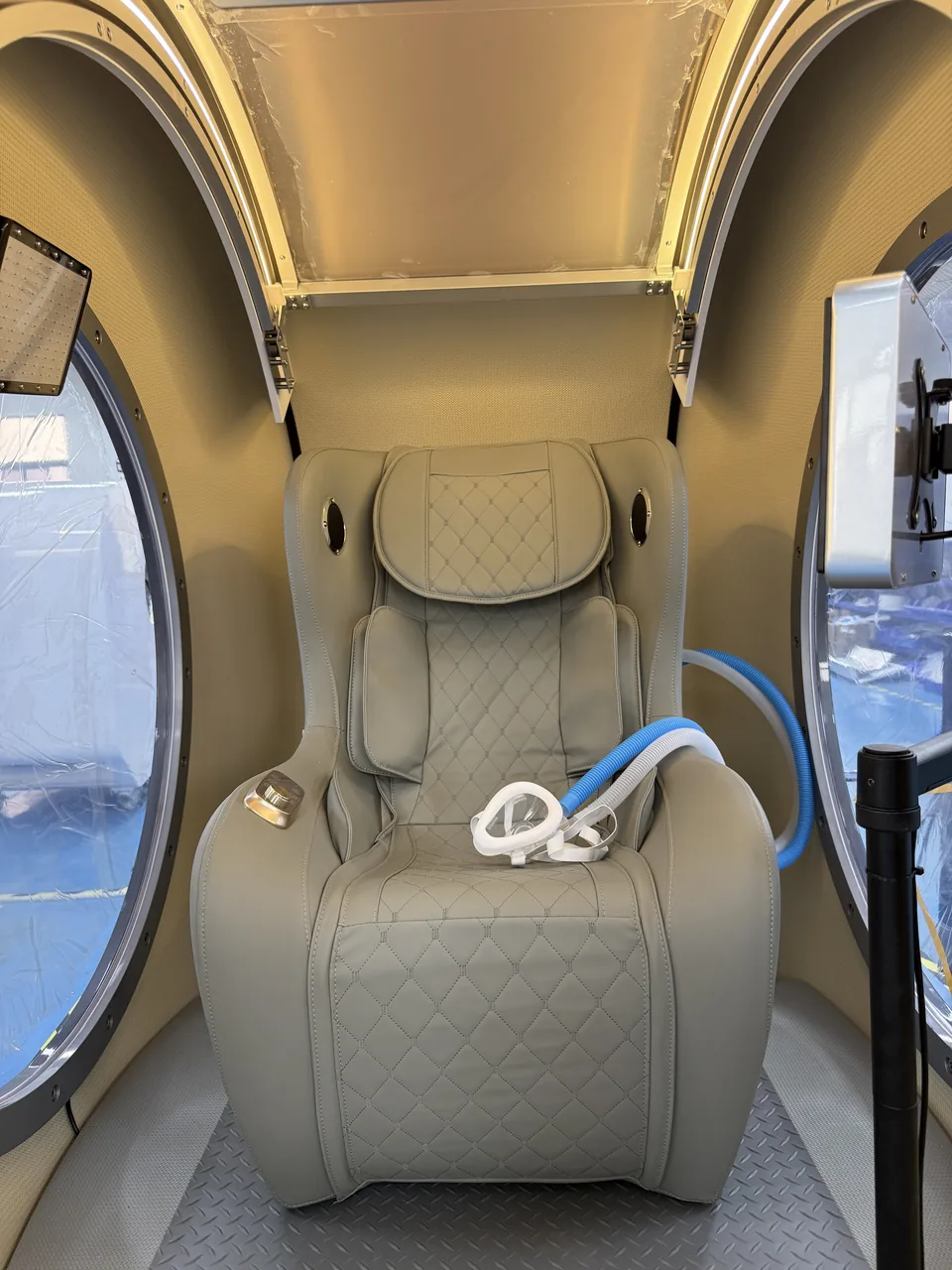

- 20L all-in-one + BIBSLarger main unit with a built-in breathing system and mask, replacing the 10L unit.Optional
- Single infrared panelOne LED infrared panel inside the chamber.Optional
- Dual infrared panels (head + foot)One panel at the head, one at the foot.Optional
- Three-panel infrared lightThree panels on an adjustable arm.Optional
- Pulse oximeterFingertip SpO₂ and pulse monitor.Optional
- Negative-ion unitSmall unit inside the cabin.Optional

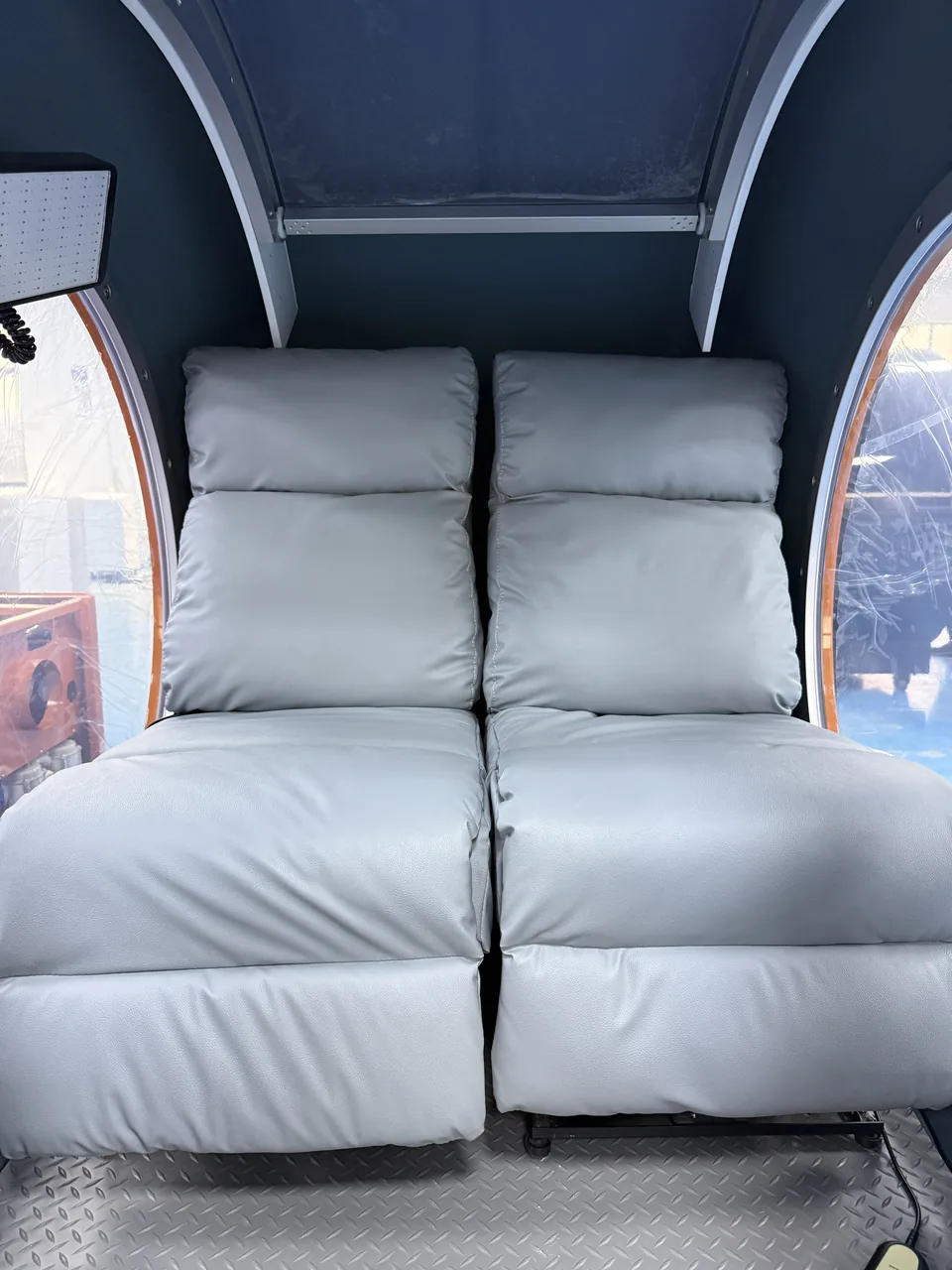

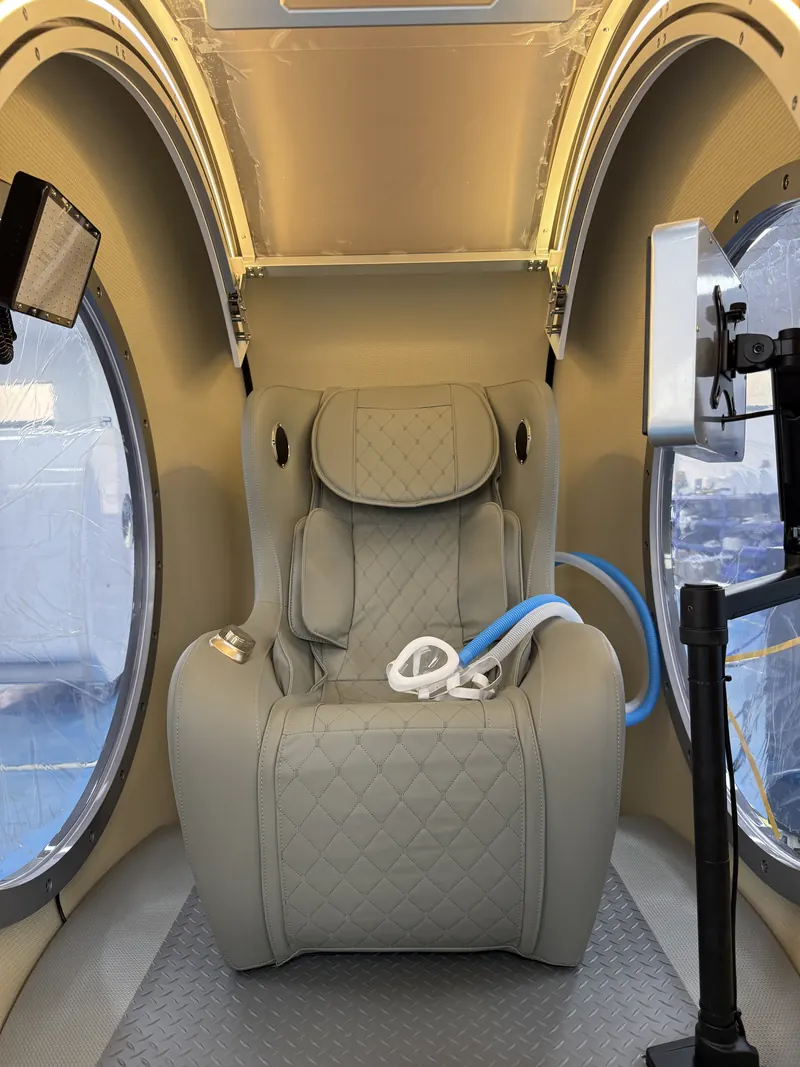

- Seating upgradeNAPA massage sofa; LUMEN flagship NAPA sofa with folding desk; VISTA two-person sofa.Optional
- Folding tableFold-out surface on the chamber wall.Optional
- PEMF seat systemPulsed electromagnetic field mat built into the seat, with its own controller.Optional
- Plain entry stepStep in front of the door.Optional
- Illuminated entry stepStep with built-in lighting.Optional
- Leather wall lining · metal handle · aluminium strip · door position limiterInterior and exterior finish items; fit confirmed per model and order.On request
Not offered on this model
- Illuminated doorLED lighting built into the door frame — LUMEN and ORION each have their own design.Not offered
Options on video
Six add-ons, shell colours, wall finishes, seating and the LED light setups, shown with our chambers. Nothing loads until you press play.
Customize
Your VISTA: shell colour, interior wall, seat.

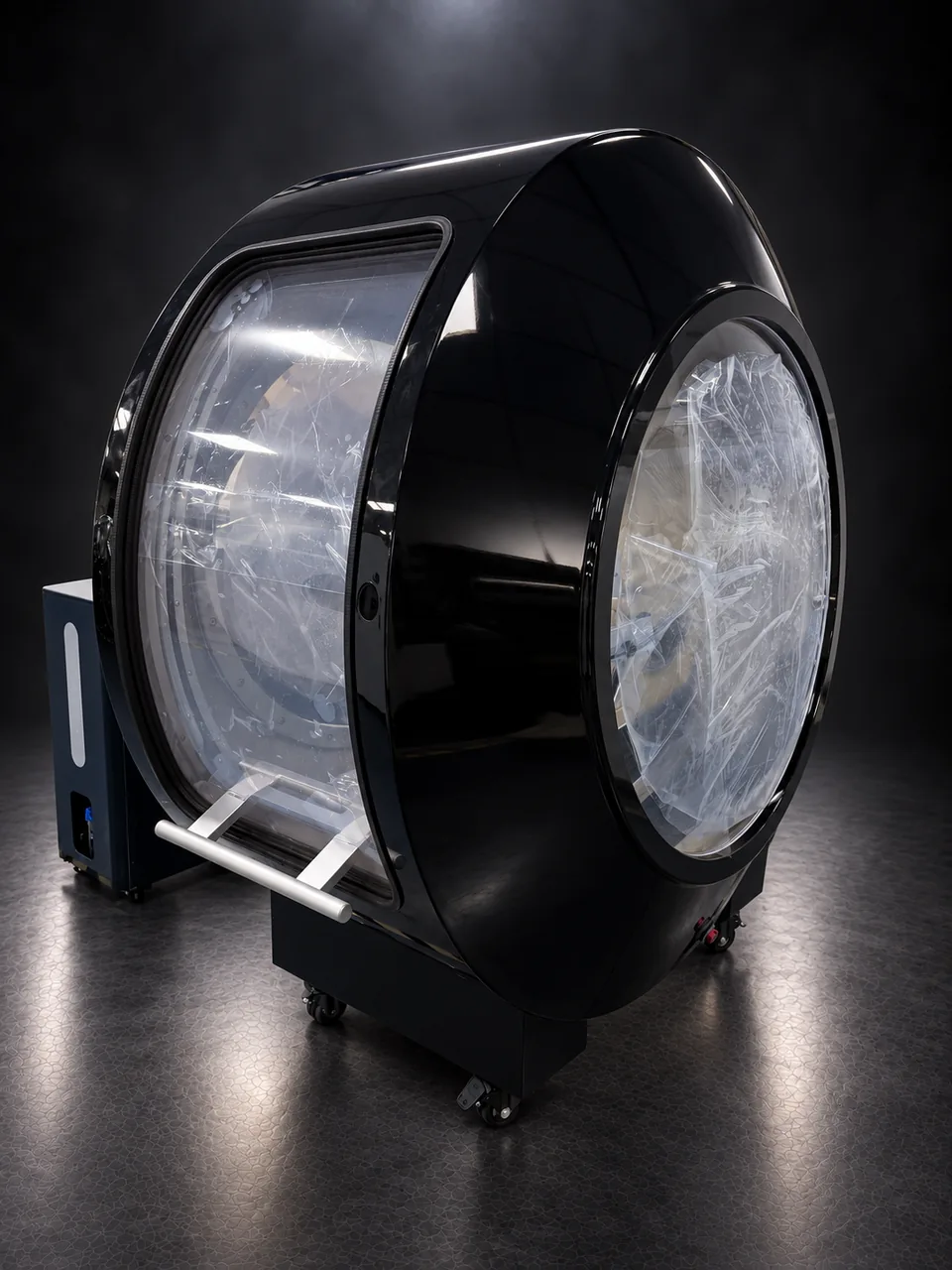

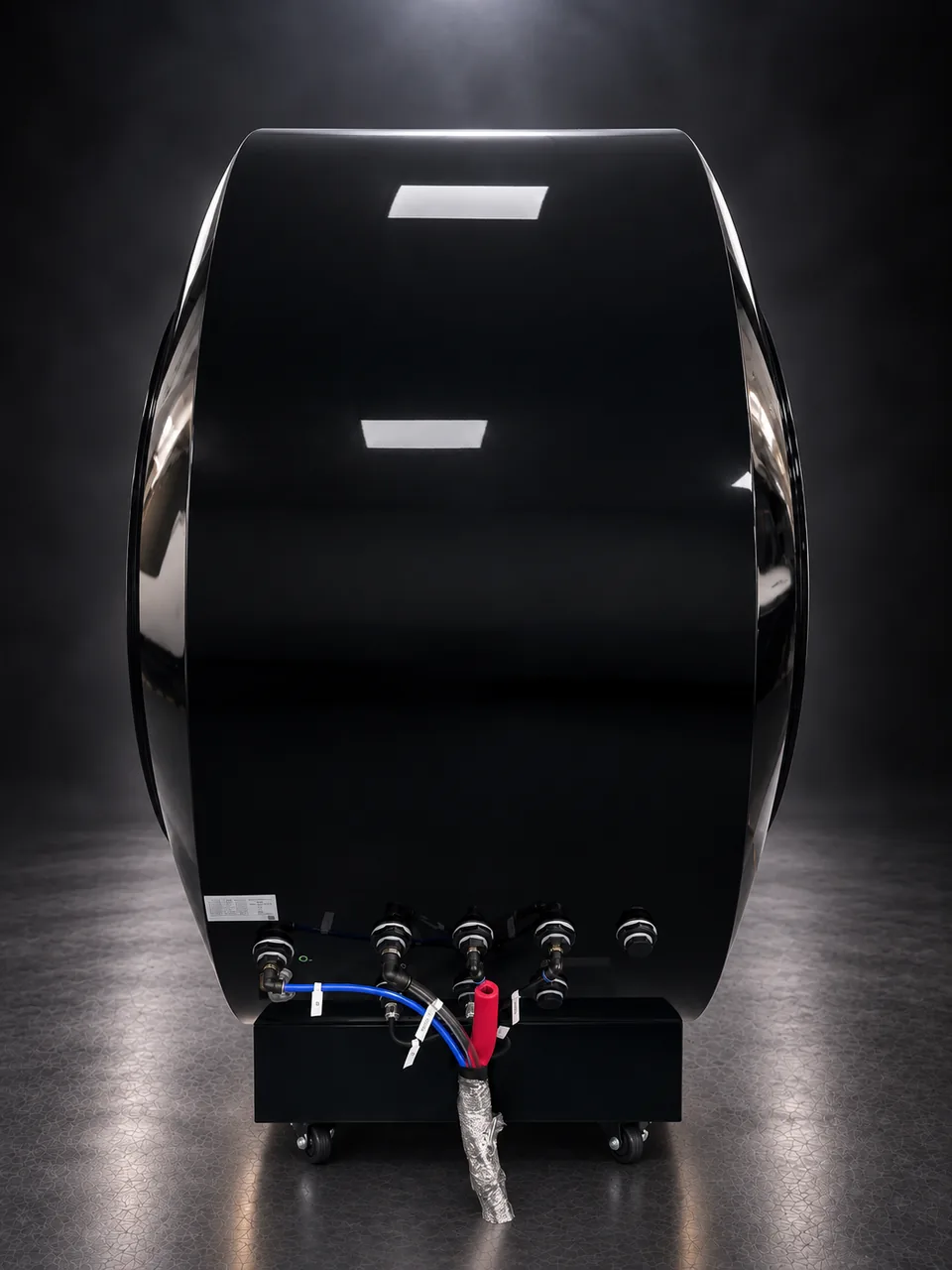

Black, white, dark grey and light grey are the standard shell colours; any of the 216 RAL Classic colours can be ordered, and two-tone designs on request. Pick a colour below to preview it.

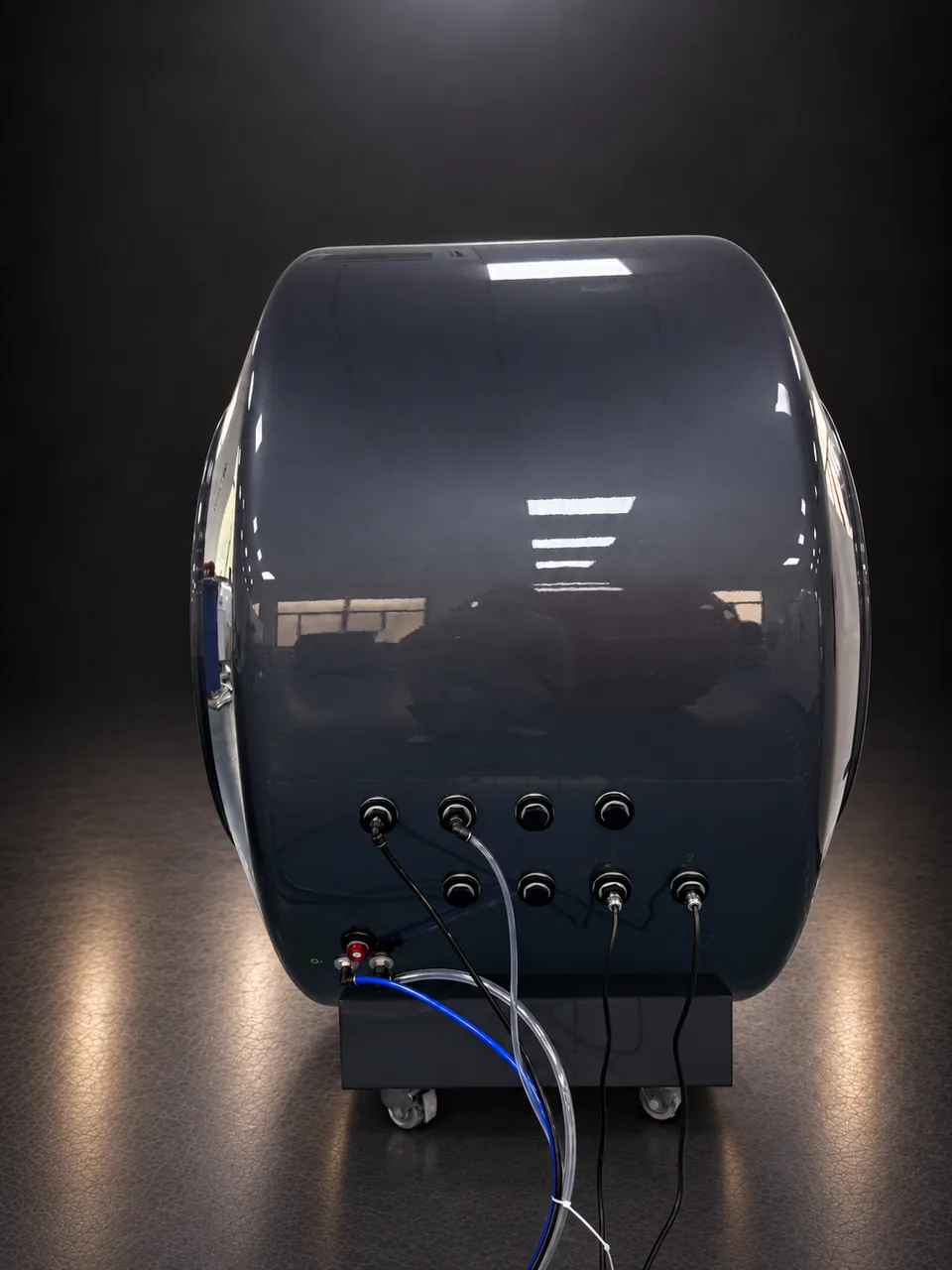

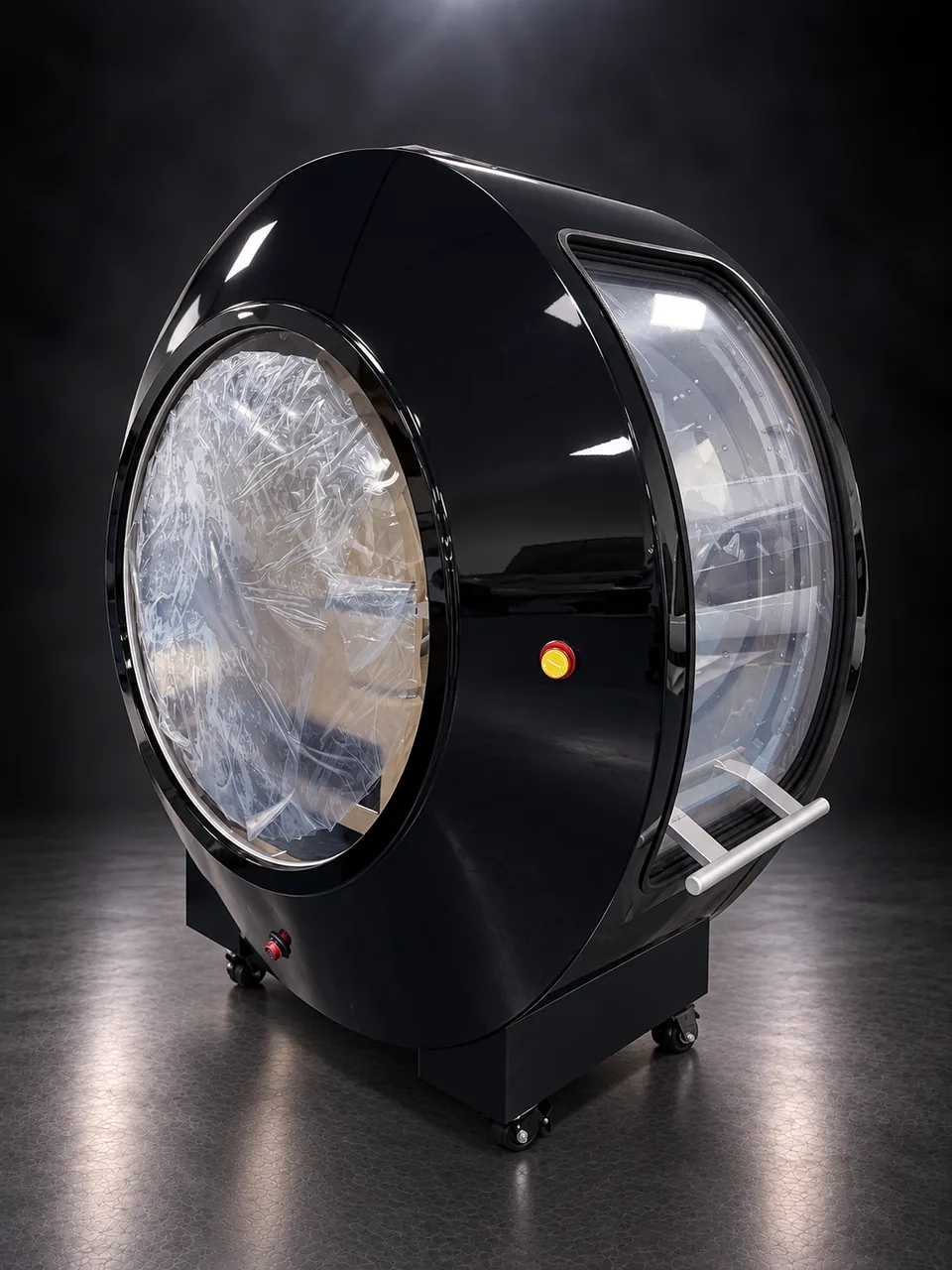

Colour preview

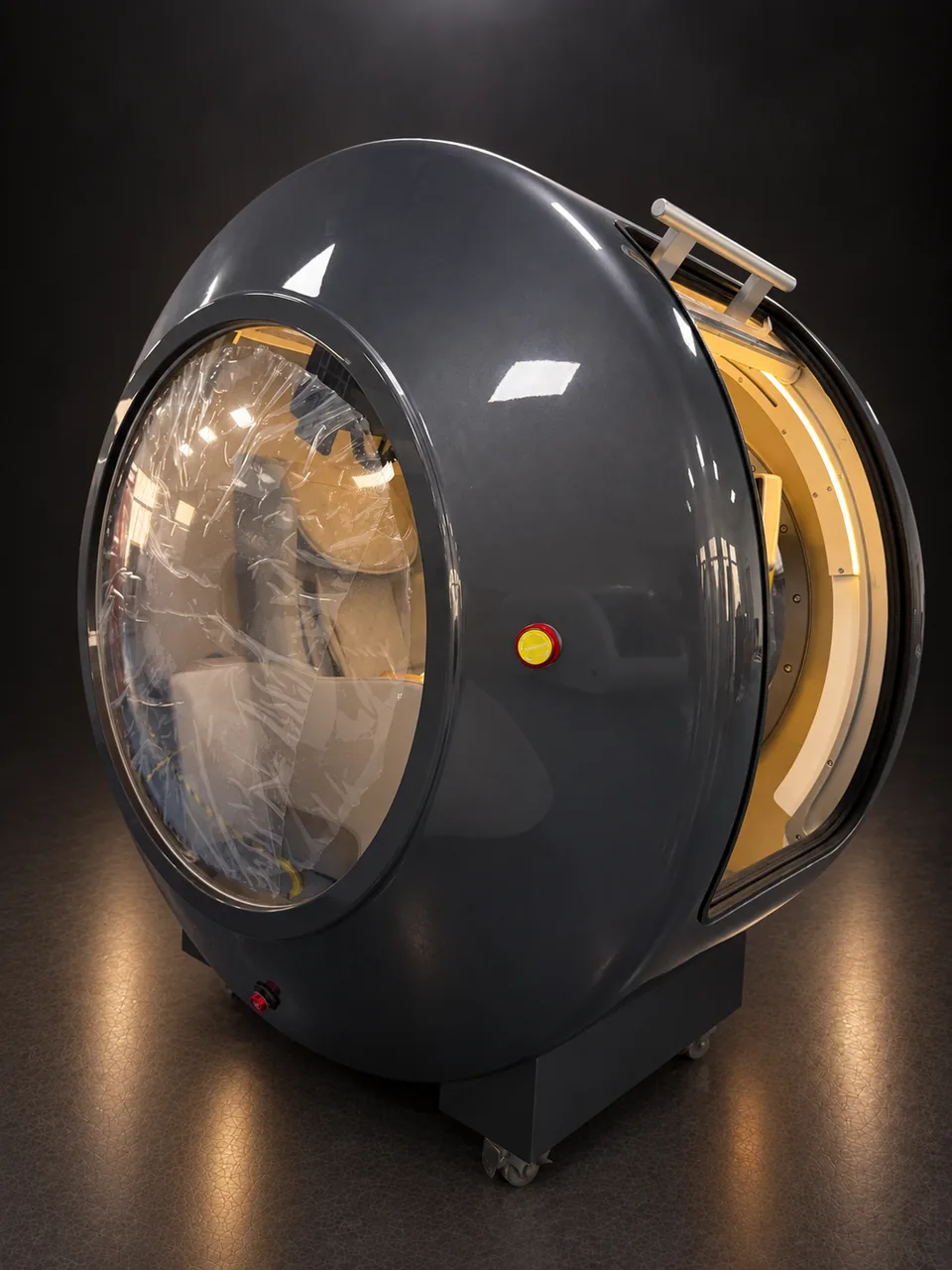

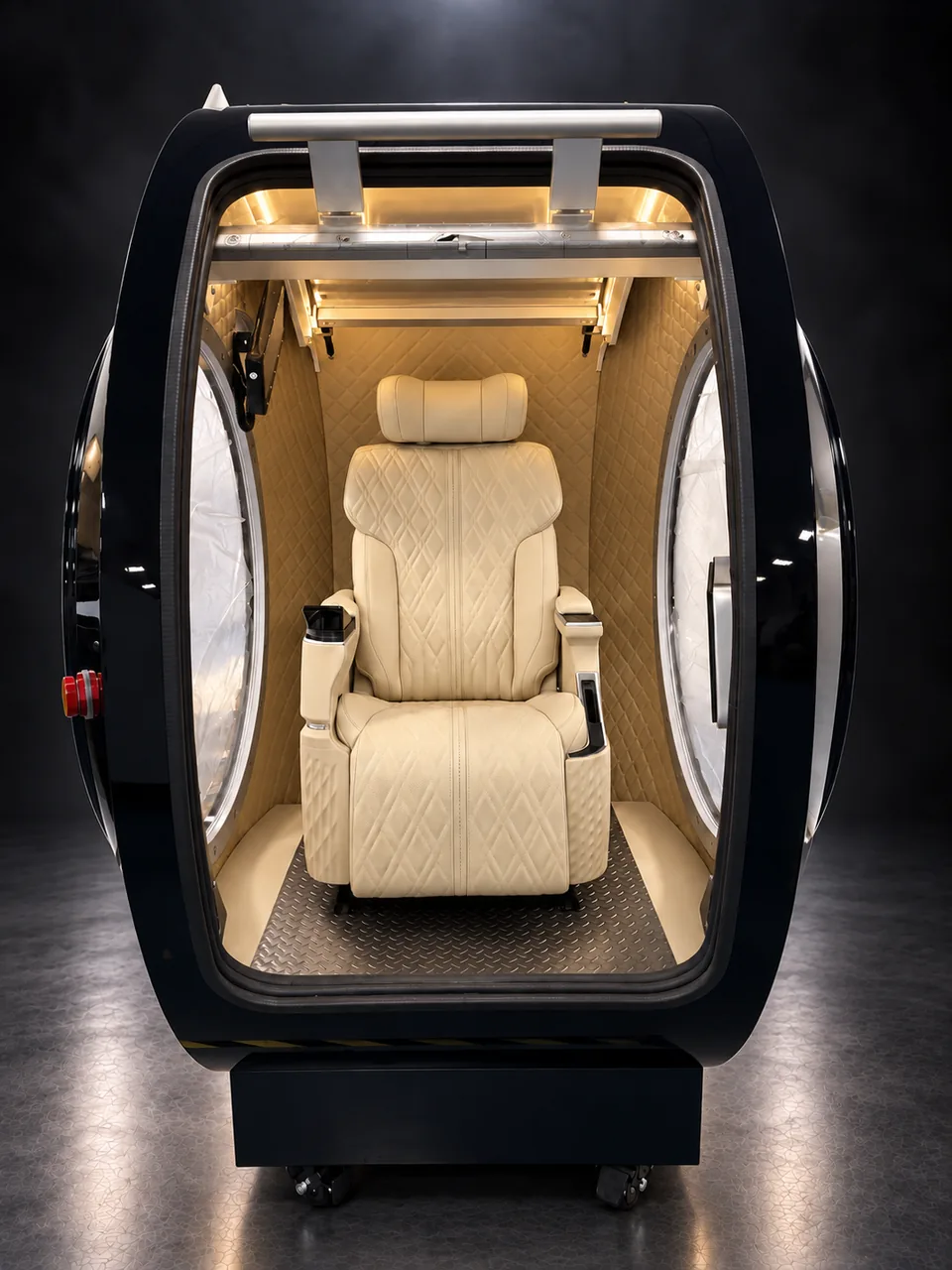

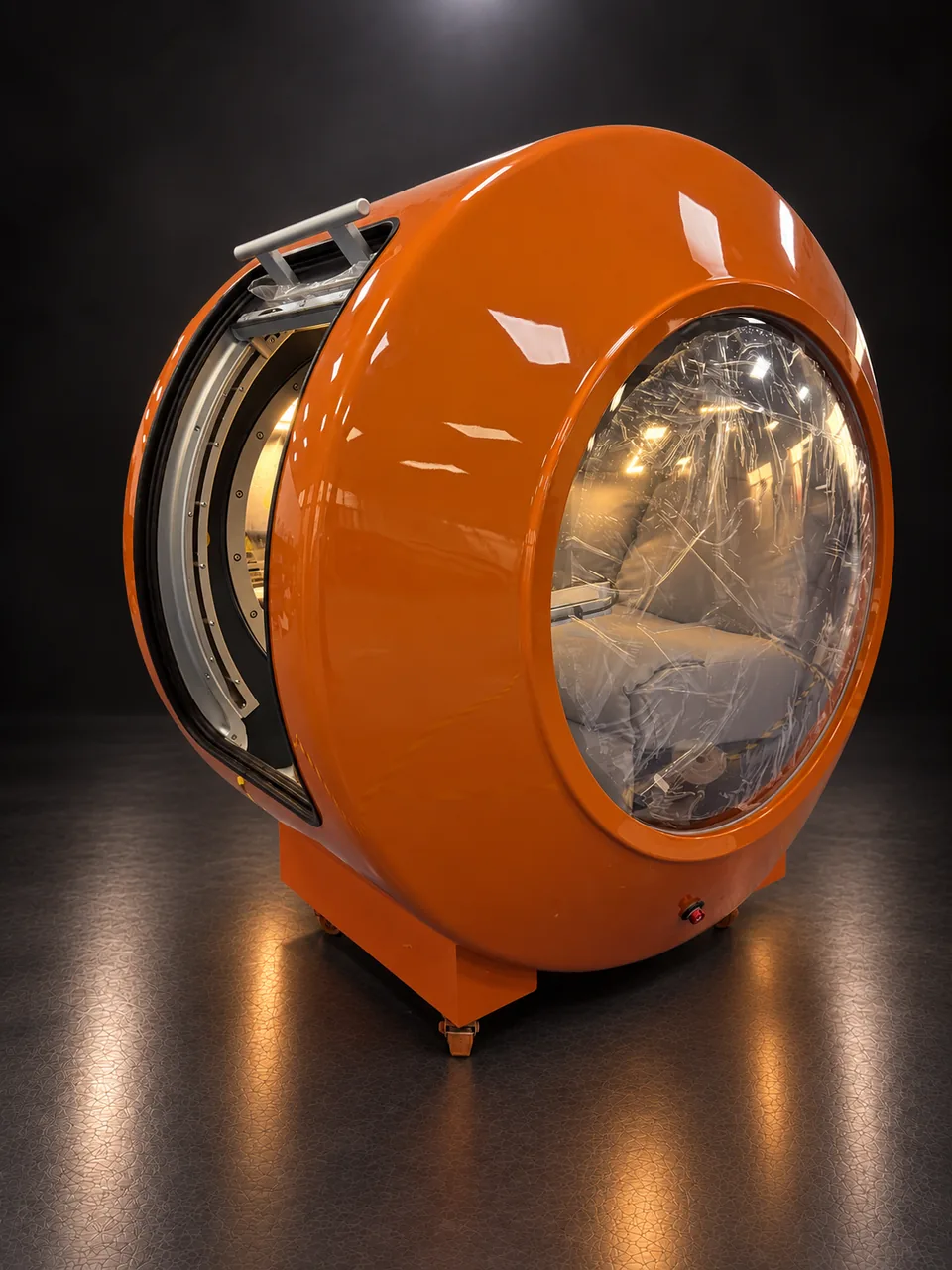

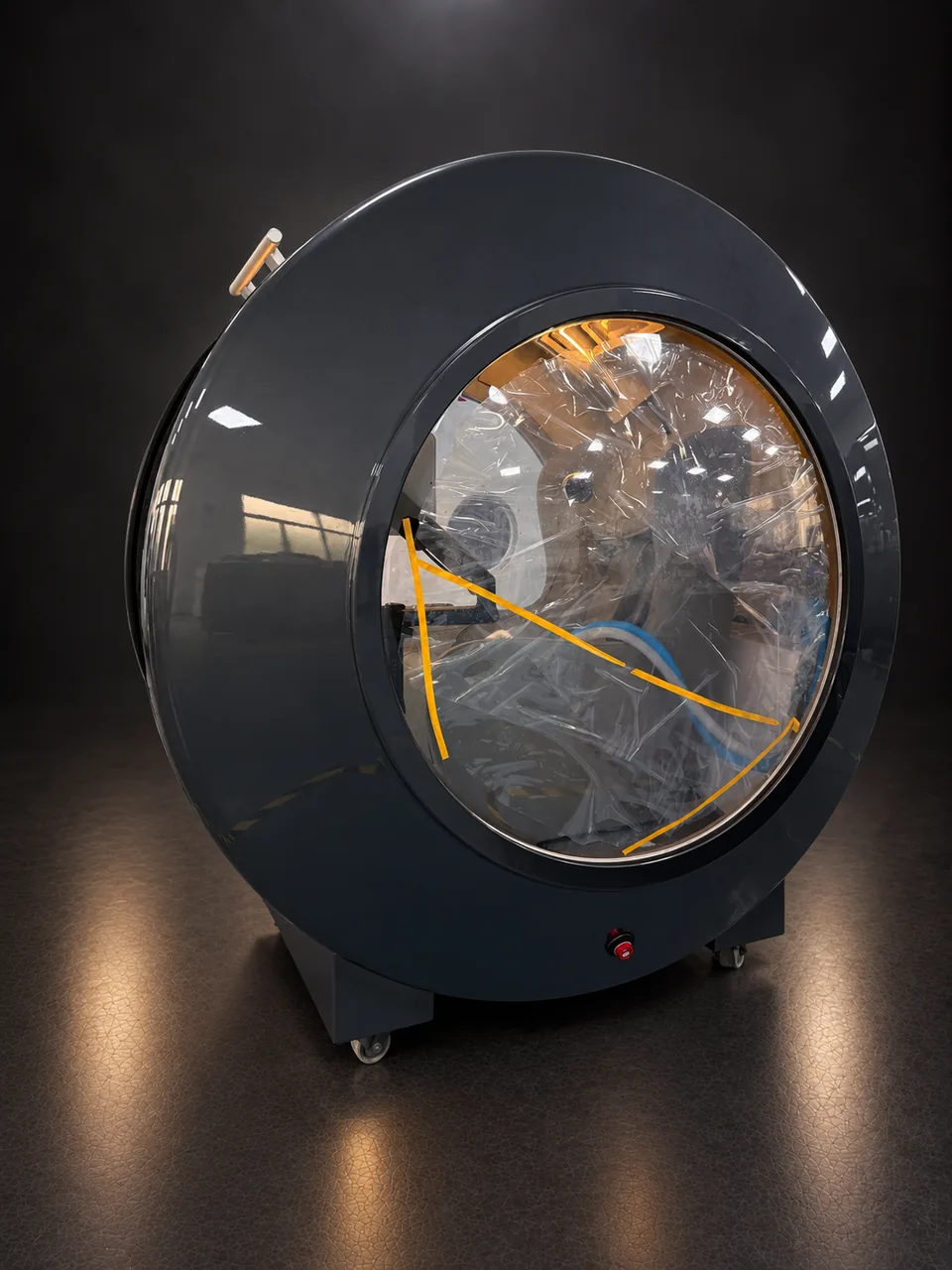

VISTA in 3 colours, 5 views.

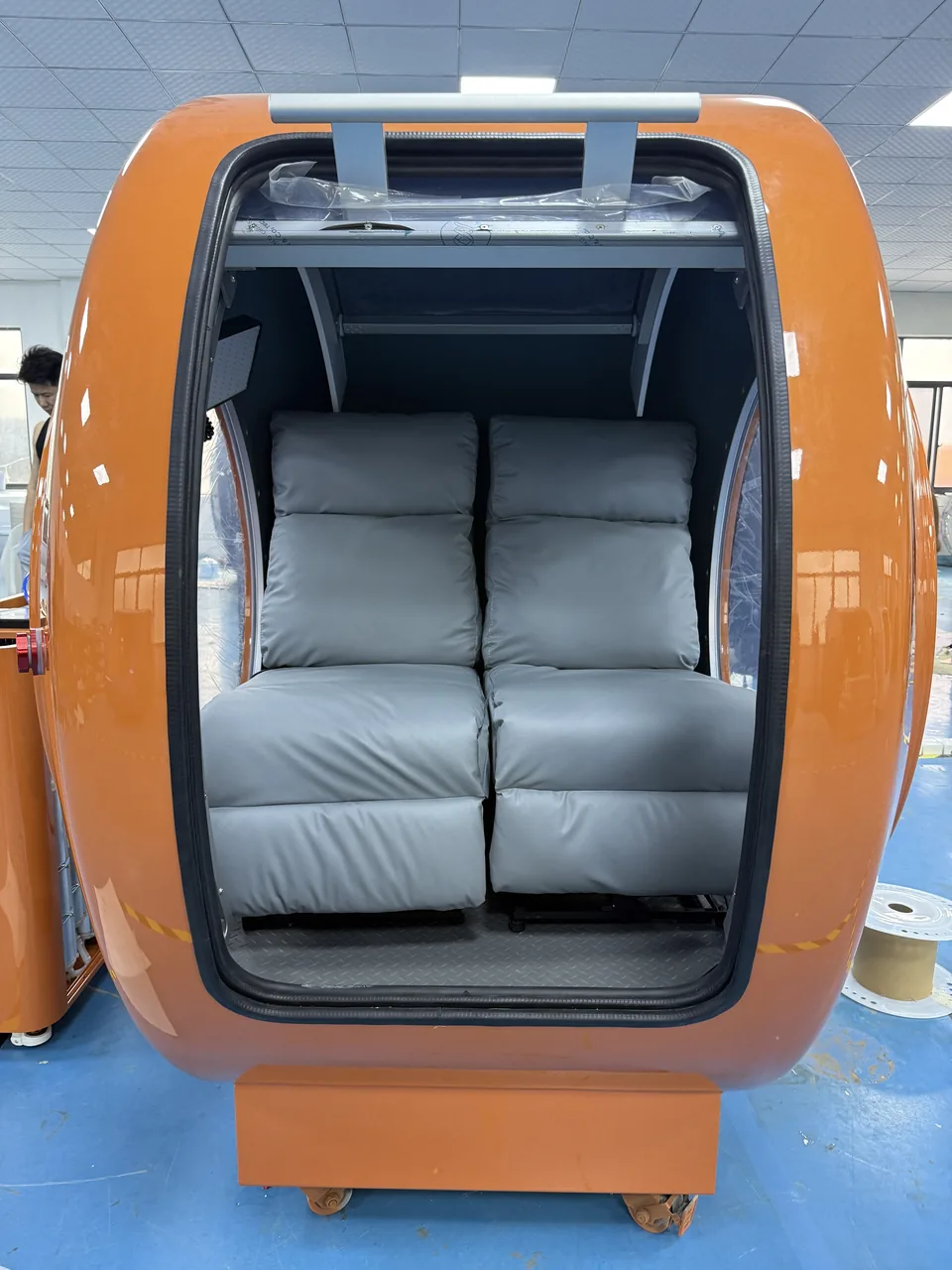

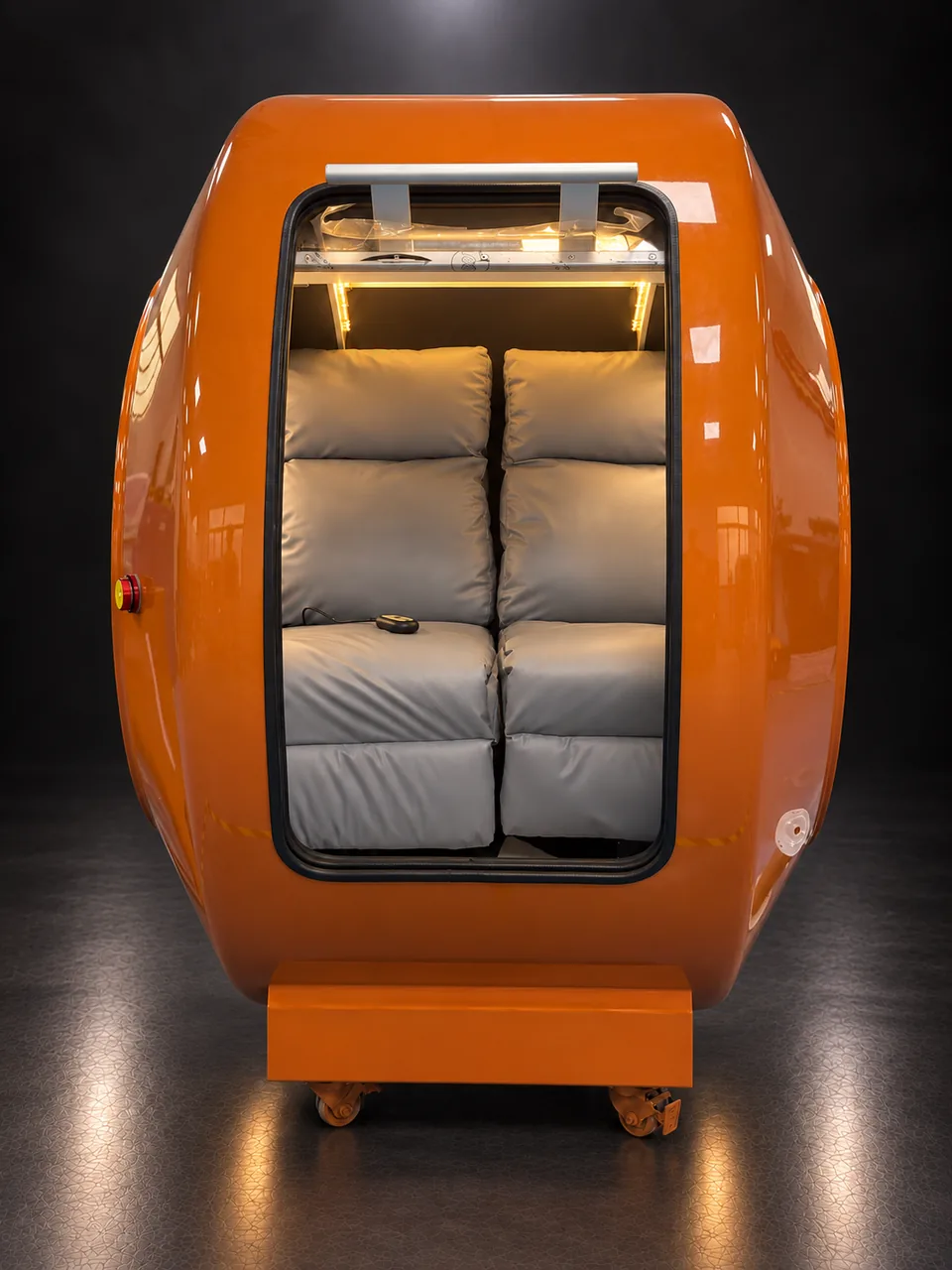

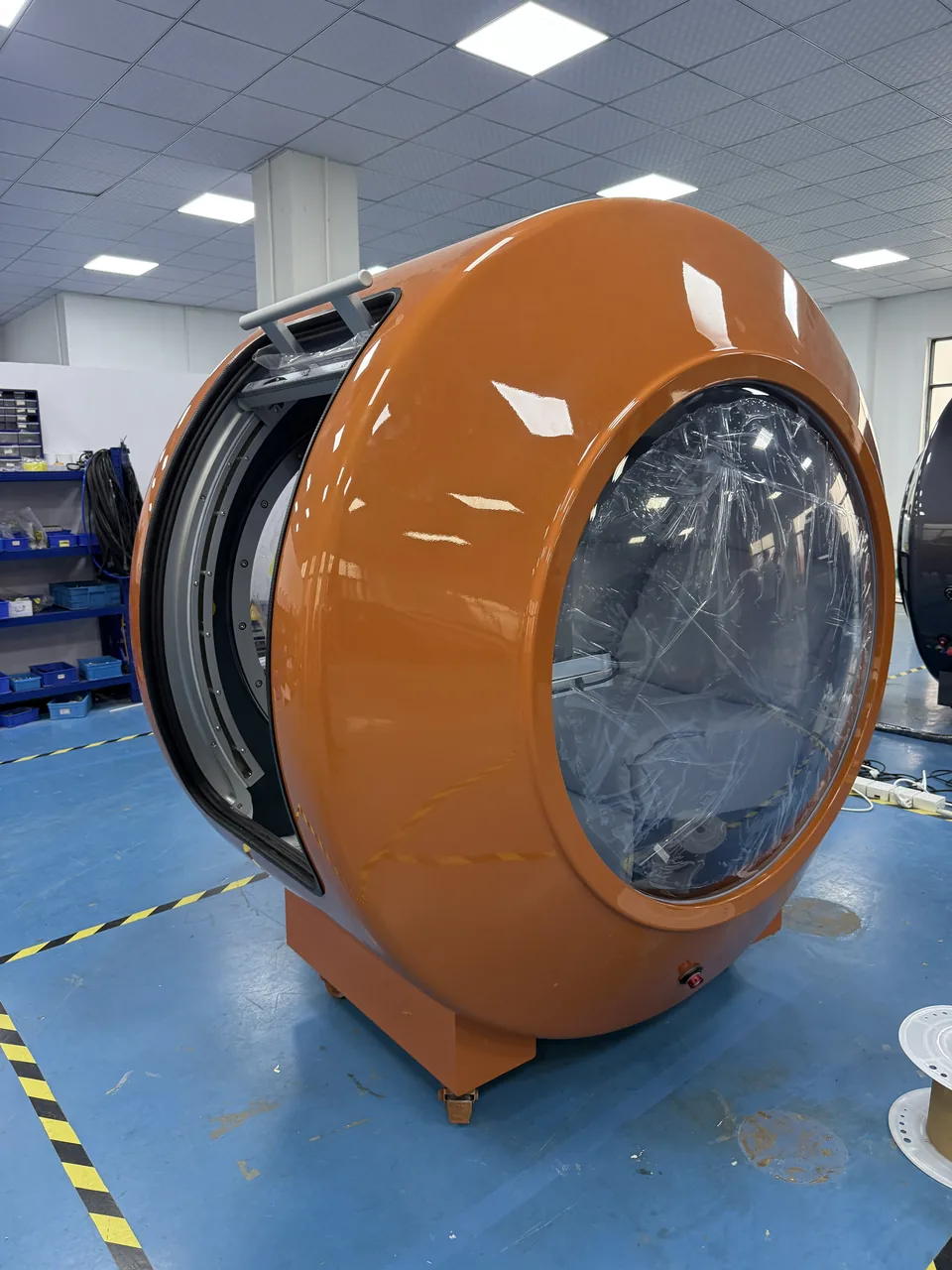

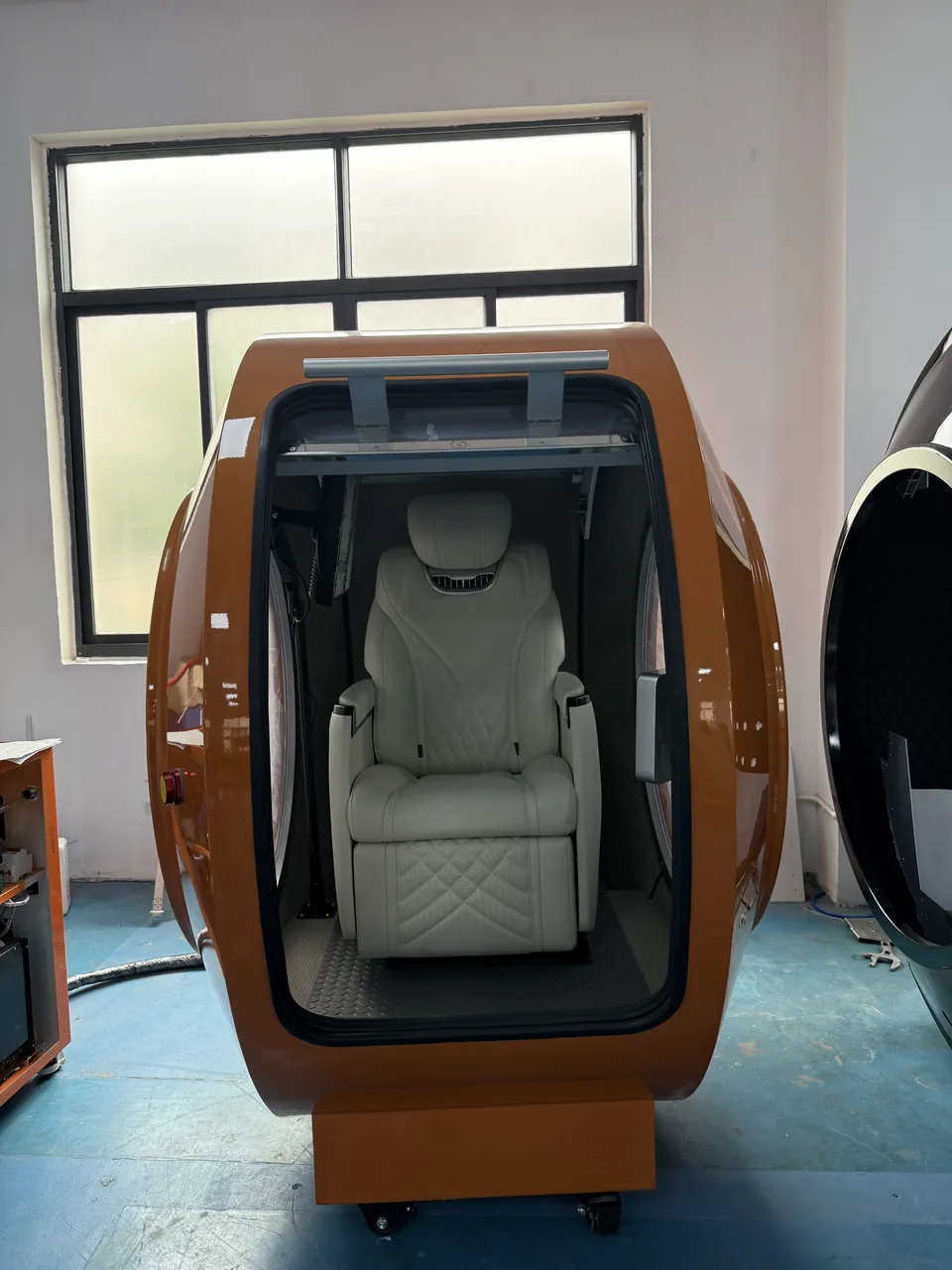

Seat shown may be a seating upgrade; the two-seater is the orange example. Colour previews are digital recolours of the chamber; on-screen colours are approximate. Confirm the final colour with a physical RAL sample before ordering.
Interior walls
Wall finishes for VISTA
Basic Wall (woven leather): 3 standard colours plus 24 woven colours. Luxury Leather Wall (padded leather, diamond quilting): 3 standard colours plus 10 quilted finishes.
See every wall colourSeating

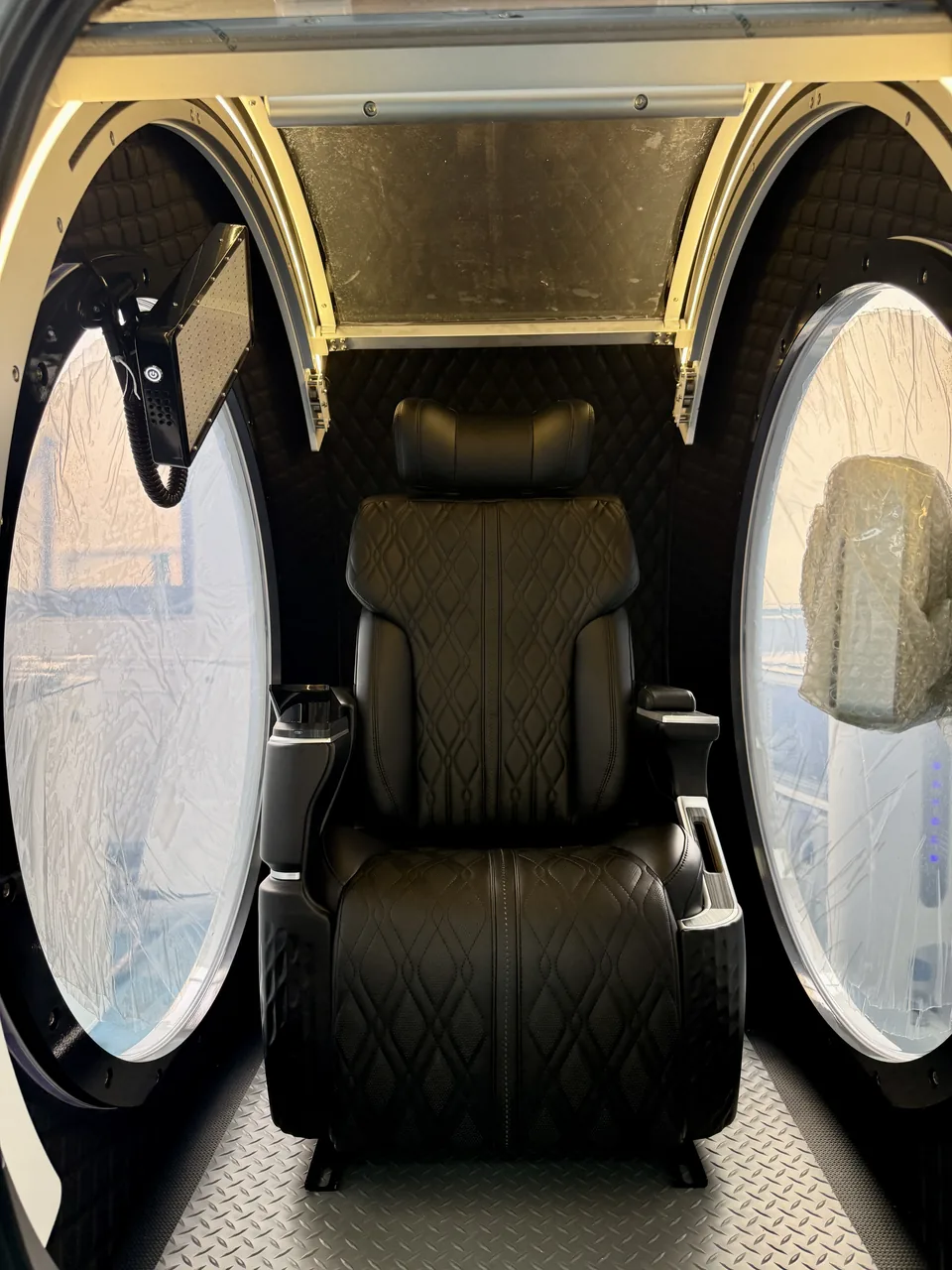

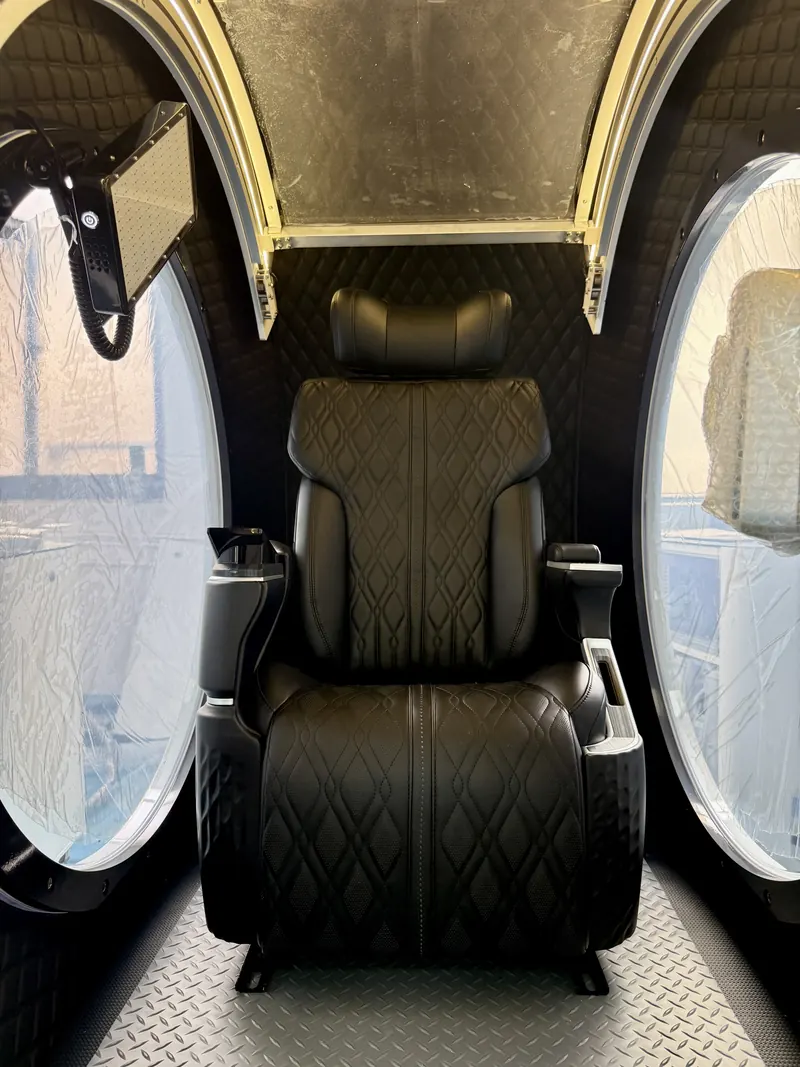

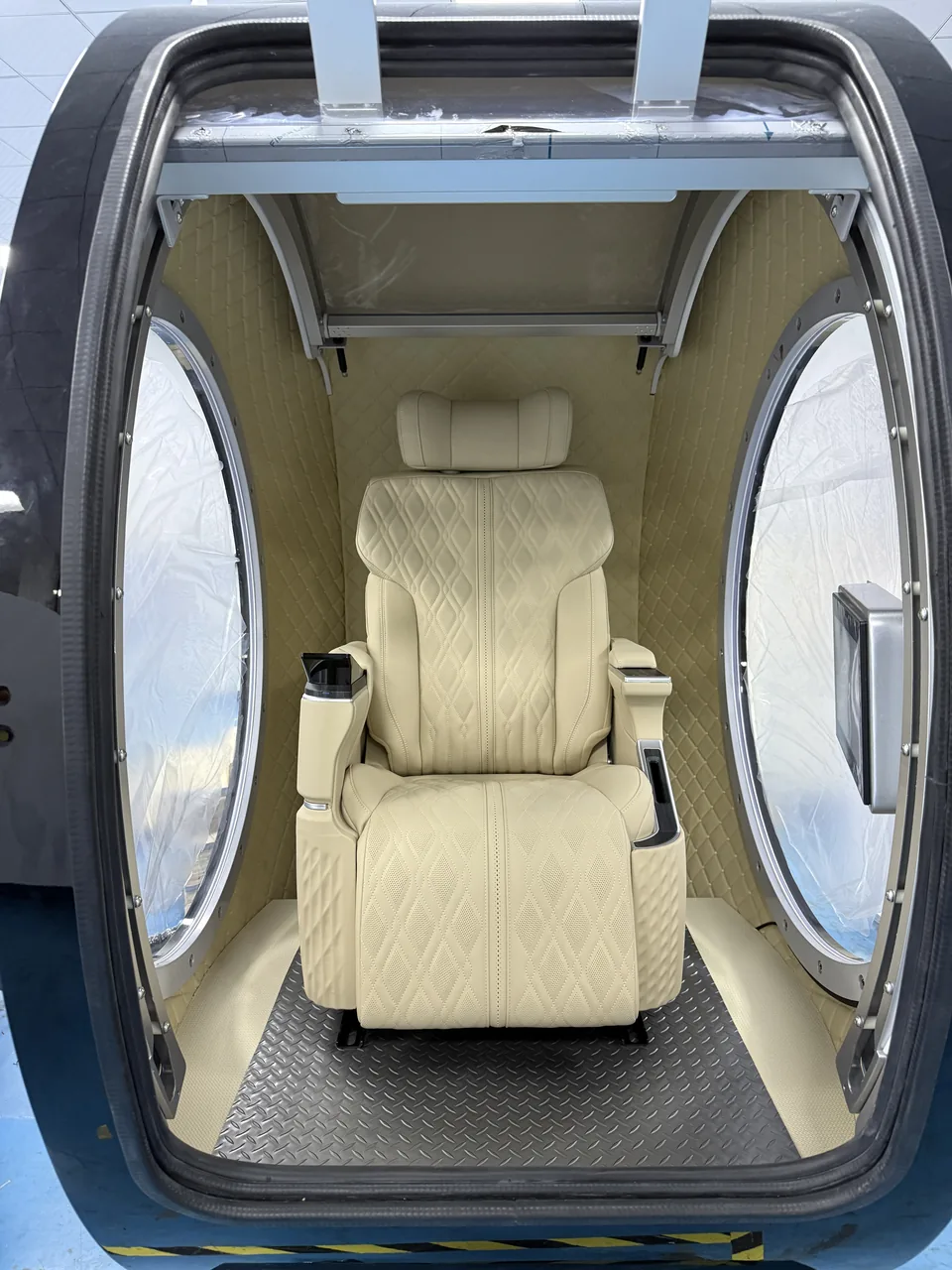

Seats for VISTA
Standard Chair (4 standard + 9 more eco cowhide colours), Upgraded Chair and the NAPA Massage Chair (3 standard + 57 custom colours). VISTA can also take a two-seater sofa.
See every seat and colourTechnical data
VISTA specifications.
Approximate figures from the current model documentation (October 2026). Interior dimensions, clear door opening, main unit size and weight, and packed dimensions are confirmed per order.
- Operating pressure
- 2.0 ATA
- Occupancy
- 1 or 2 people, seated
- External size (L × W × H)
- 1,850 × 1,400 × 2,000 mmChamber only — allow space for the main unit, connections, door movement and service.
- Chamber weight
- ≈ 860 kgExcludes the main unit and packaging; the final configuration can affect weight.
- Narrowest documented width
- 1,400 mmcomplete chamber body. Body width, not a doorway clearance.
- Standard main unit
- 10L all-in-oneOxygen concentrator, air compressor and air conditioning in one cabinet.
- Optional main unit
- 20L all-in-one + BIBSTwo 10L concentrators, three compressors, built-in breathing system with mask.
- Oxygen supply concentration
- 93% ± 3%At the concentrator supply — not the oxygen level of the chamber air.
- Controls
- 2 touch panels + 2 intercoms, inside and outside
- Interior
- Warm-white LED · standard wall finish · standard sofa
- Standard exterior colours
- Black · White · Dark Grey · Light Grey
- Warranty
- 2 years (company policy)Scope, conditions and start date are set in your contract.
- Door thickness
- 20 mm
Electrical
| System | Supply | Rated power | Current |
|---|---|---|---|
| 10L all-in-one (standard) | 110 V / 60 Hz | 2,000 W | 20 A |
| 10L all-in-one (standard) | 220 V / 50 Hz | 1,500 W | 8 A |
| 20L all-in-one + BIBS (optional) | 110 V / 60 Hz | 2,700 W | 25 A |
| 20L all-in-one + BIBS (optional) | 220 V / 50 Hz | 2,500 W | 13 A |
Values from the model documentation. Choose the version that matches your installation; a local electrician plans a dedicated circuit.
In the crate
Delivered with every VISTA, besides the chamber, its all-in-one main unit and the options on your order.
Accessories
- 2 × oxygen masksStandard oxygen masks; the BIBS mask is part of the optional 20L system.
- 2 × headsetsTwo headsets, packed with every chamber.
- 2 × door sealsTwo door seals in the crate, so a replacement is on hand.
Documents
- Operation manualHow to run a session, the touch panels and the intercom.
- Product manualSpecifications, connections and the main unit.
- Maintenance manualChecks, consumables and how to replace the parts you can change yourself.
- Company profileWho we are and what we make.
VISTA spec sheet, drawings and brochure
We send model documents to buyers directly rather than publishing them for download: the specification sheet, dimensioned drawings for your access route and the brochure, plus copies of the quality documents that cover your model and destination. Tell us the model and your country and the team sends them the same working day (China Standard Time).

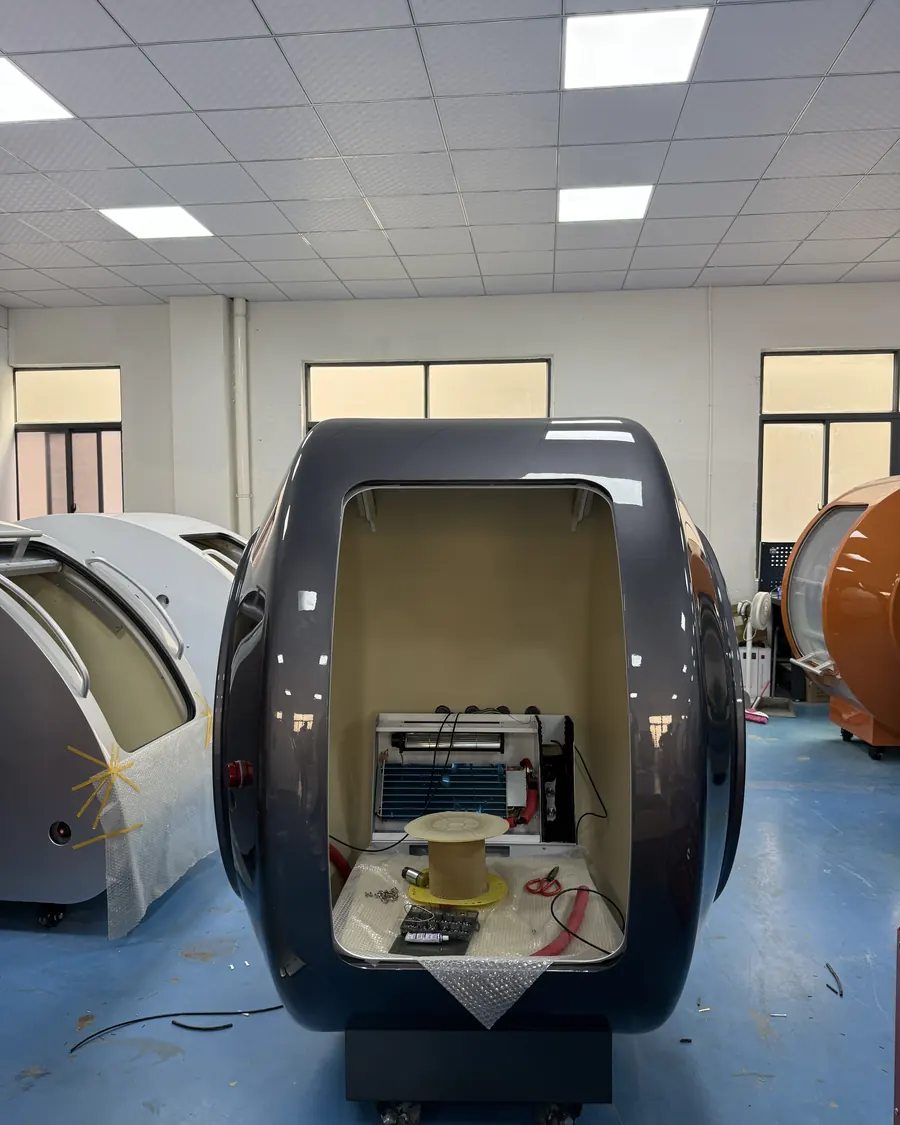

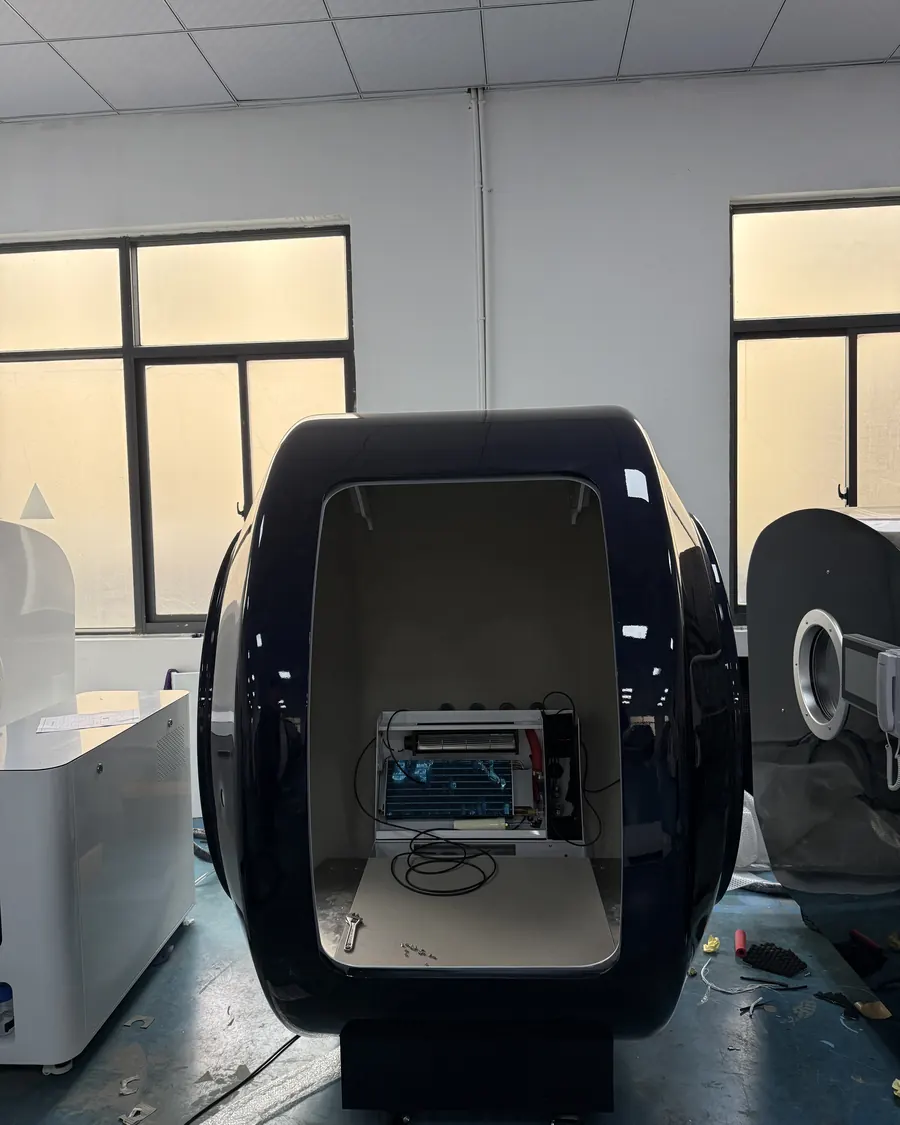

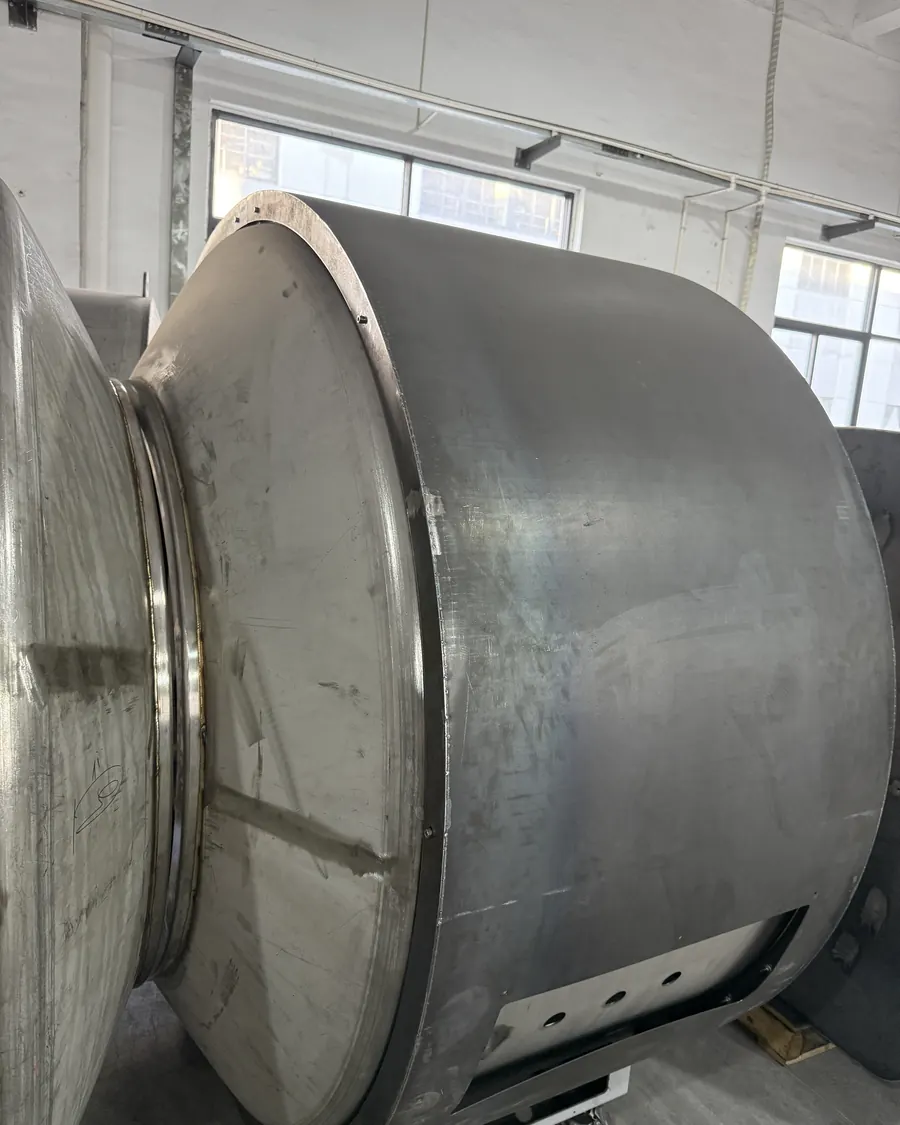

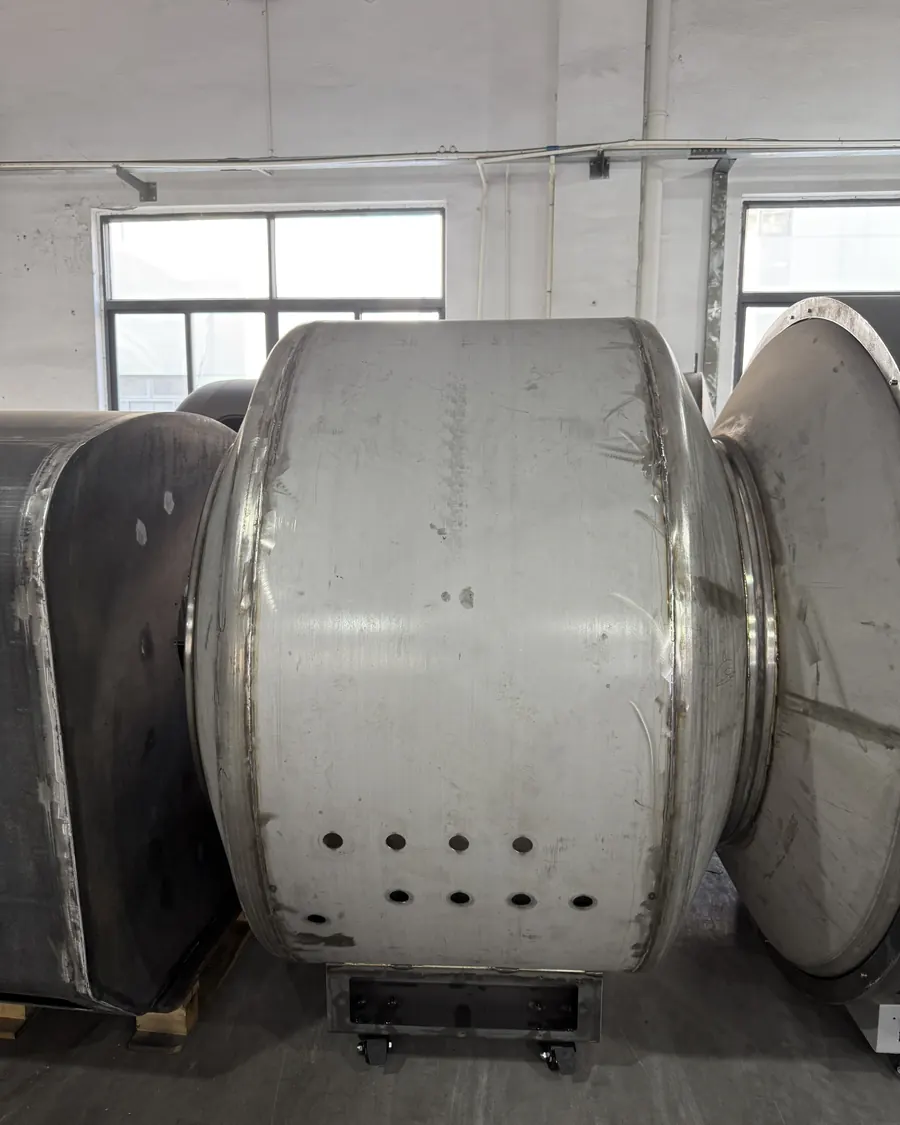

How it is made

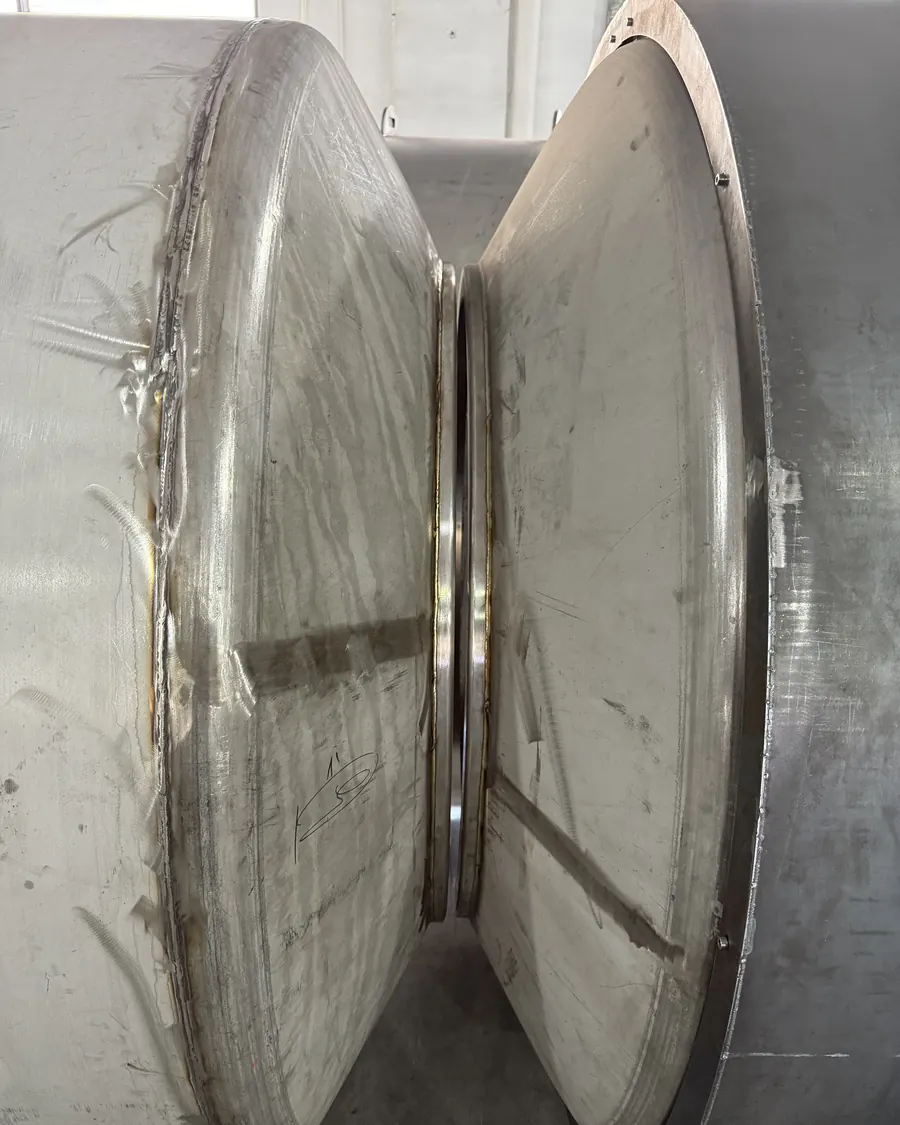

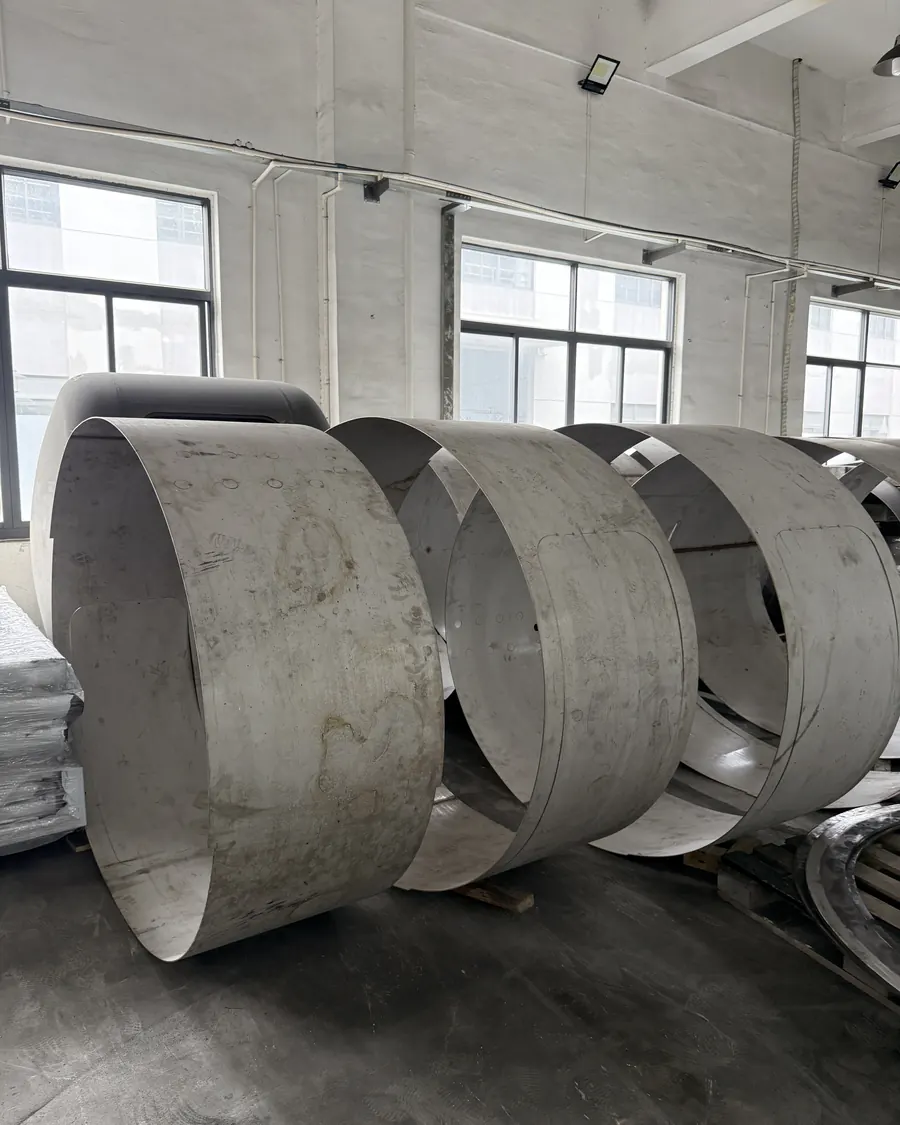

From steel shell to crated chamber.
VISTA photographed at each stage in our factory in Zhuji. Design, fabrication, welding, the main unit, controls, assembly and testing are handled by our own team.
FAQ
VISTA questions.
More answers in the buyer guides and the FAQ.
Is VISTA the two-person chamber, or is that ATLAS?
VISTA is a current model that can be configured for one or two people. ATLAS is a separate, larger two-person design whose drawings are completed; it is not in production.
What are the two VISTA exterior designs?
Rounded and Defined contour. They are different shell contours, not different paint colours. Choose the design together with the seating and the main unit; the installation drawing is confirmed for your choice.
Will VISTA fit through my door?
VISTA is 1,400 mm wide and cannot be taken apart for access, so the route must take the complete body plus handling clearance. If it cannot, LUMEN — developed from the same footprint — reduces to a 770 mm central body.
Which features in the photos are standard?
Standard: the 10L all-in-one main unit with air conditioning, standard sofa and wall finish, warm-white interior LED, two touch panels and two intercoms. The two-person sofa, NAPA massage seat, 20L + BIBS, infrared panels, PEMF, folding table, pulse oximeter, negative-ion unit and entry steps are optional. An illuminated door is not offered on VISTA.
What power supply does VISTA need?
With the standard 10L all-in-one system: 2,000 W, 20 A at 110 V / 60 Hz, or 1,500 W, 8 A at 220 V / 50 Hz. With the optional 20L system and BIBS: 2,700 W, 25 A at 110 V, or 2,500 W, 13 A at 220 V. A local electrician plans a dedicated circuit. Electrical guide.
What does “93% ± 3%” oxygen mean?
It is the oxygen concentration at the concentrator supply. It is not the oxygen level of the air inside the pressurized chamber, and it is not a medical claim. Oxygen systems explained.
Is there a price list for VISTA?
No. Each chamber is configured and shipped to a specific destination, so quotations are prepared per project and confirmed by our sales team.
Can I order VISTA in my own colour or with my logo?
Black, white, dark grey and light grey are the standard shell colours; any of the 216 RAL Classic colours can be ordered, and two-tone designs on request. Your own logo is confirmed with your order; private-label (OEM / ODM) projects are welcome, including single units. See the colours, walls and seats.
What warranty and support come with VISTA?
SkelundTech's company warranty policy is two years; scope, conditions and start date are set in your contract. Support is remote from the factory team — assembly drawings, guidance and after-sales help — and replacement parts are supplied free of charge; if you need them fast, you pay only the express freight. There are no local technicians at present.
Get a quote
Get a VISTA quote.
Share the model, destination and timing. Our sales team prepares and confirms every quotation — text messages are enough, and no video call is required.
