2.0 ATA hard-shell hyperbaric chamber · Seated, upright
The flagship chamber that still gets through the door.
LUMEN is a single-person 2.0 ATA hard-shell chamber, 1,850 × 1,400 × 2,000 mm and about 1,000 kg, with the longest option list in the range. When the route into the building is narrow, its left and right modules come off, the 770 mm central body is carried in, and the chamber is reassembled on site.
- Pressure
- 2.0 ATA
- Occupancy
- 1 person, seated
- Size L × W × H
- 1,850 × 1,400 × 2,000 mm
- Chamber weight
- ≈ 1,000 kgexcl. main unit
- Narrowest width
- 770 mmcentral body, side modules removed
- Main unit
- 10L all-in-onewith air conditioning
Video
Watch LUMEN — right here.
Press play to watch our LUMEN walkthrough without leaving this page. The player is YouTube's own, loaded in privacy-enhanced mode only when you press play.
Modular route into the room

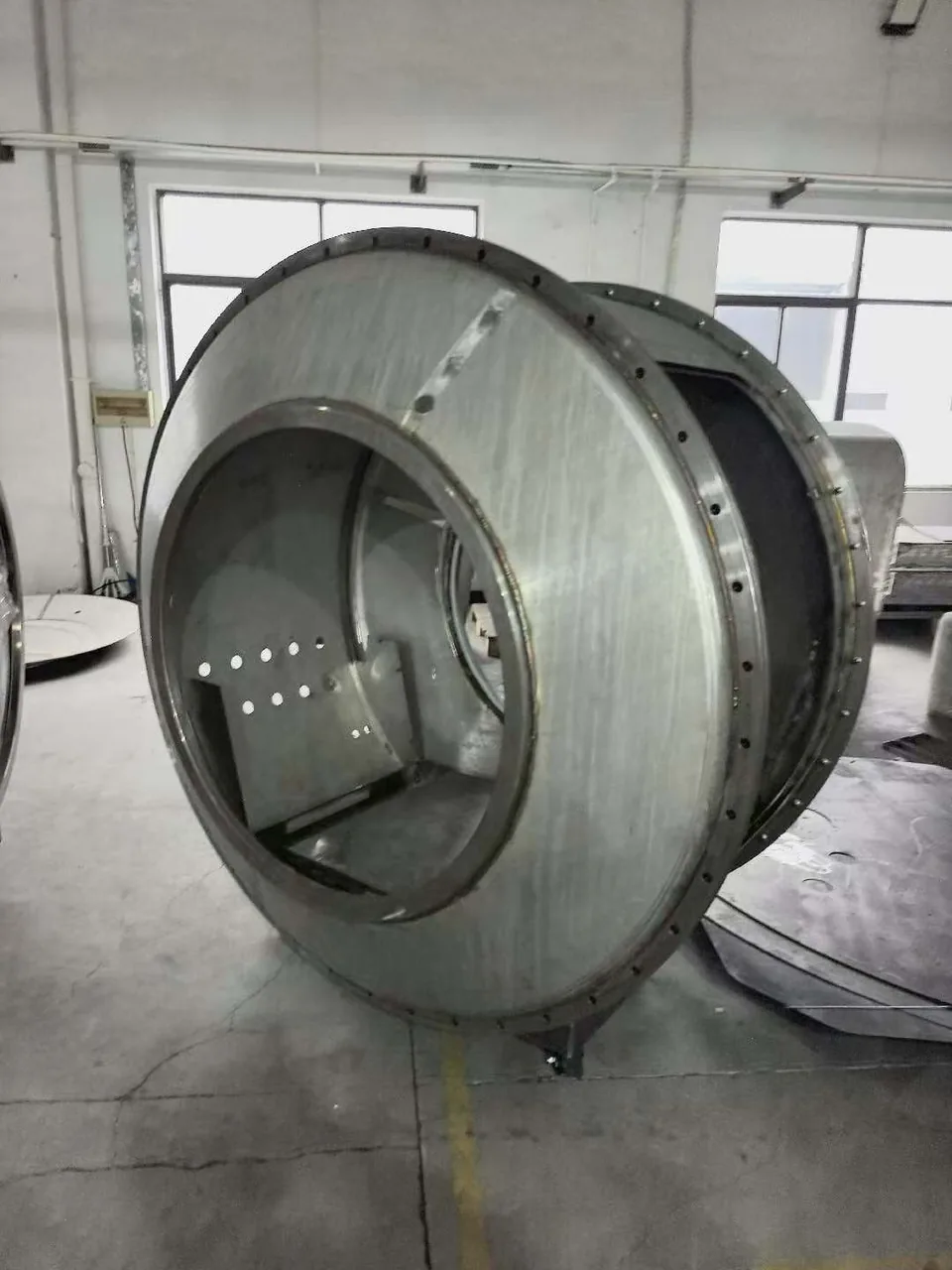

Flanges are welded to each module; the side modules bolt to the central body and are covered by outer metal covers. Delivered complete — taken apart only when the route needs it.
Longest option list
The only model besides VISTA with three-panel infrared, plus the flagship NAPA sofa with folding desk, PEMF seat, illuminated door and illuminated step.
Same interior as VISTA
Same footprint and interior space as VISTA; the metal covers make LUMEN slightly longer and taller outside.
Built and tested in our factory
Design, welding, main unit, controls, assembly and testing in-house in Zhuji, China. Photographed at every stage.
More videos on our YouTube channel. Optional equipment may be shown.
Gallery

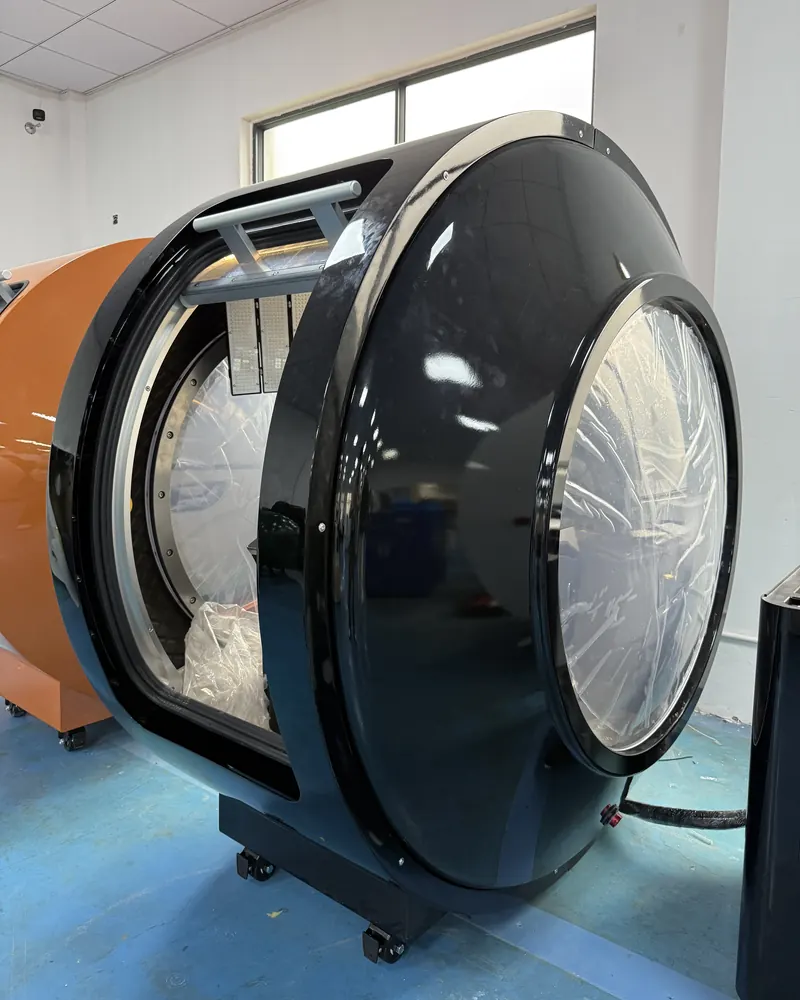

LUMEN: exterior, interior, controls — and on the factory floor.
Factory photographs and brochure images, from the finished chamber to the raw steel shell. Every caption says what it is, and optional equipment is labelled. Select a photo to enlarge it.
Factory clips
Short clips filmed in our factory. Sound removed; nothing loads until you press play.
Access & site planning
Will it reach the room?
Central body with both side modules removed. A body width, not a guaranteed doorway clearance.
Widths are body measurements from the model documentation — not guaranteed doorway clearances. Height, turns, stairs, lifts, floor loading and handling space are reviewed for each project.
What to send us before you order
- Photos and measurements of each narrow point on the route — doors, corridors, turns, stairs
- Lift door width and height, cabin width and depth, rated load
- Floor level and floor loading for upper floors
- Room size and where the separate main unit can stand
- Your power supply: 110 V / 60 Hz or 220 V / 50 Hz
Standard and optional
What every LUMEN includes — and what you can add.
Many photographs show optional equipment. This is the line between the two, from the current model documentation and the five-model configuration comparison. Options are quoted with the chamber; combinations and the power version are confirmed by our engineers.
Included with every chamber

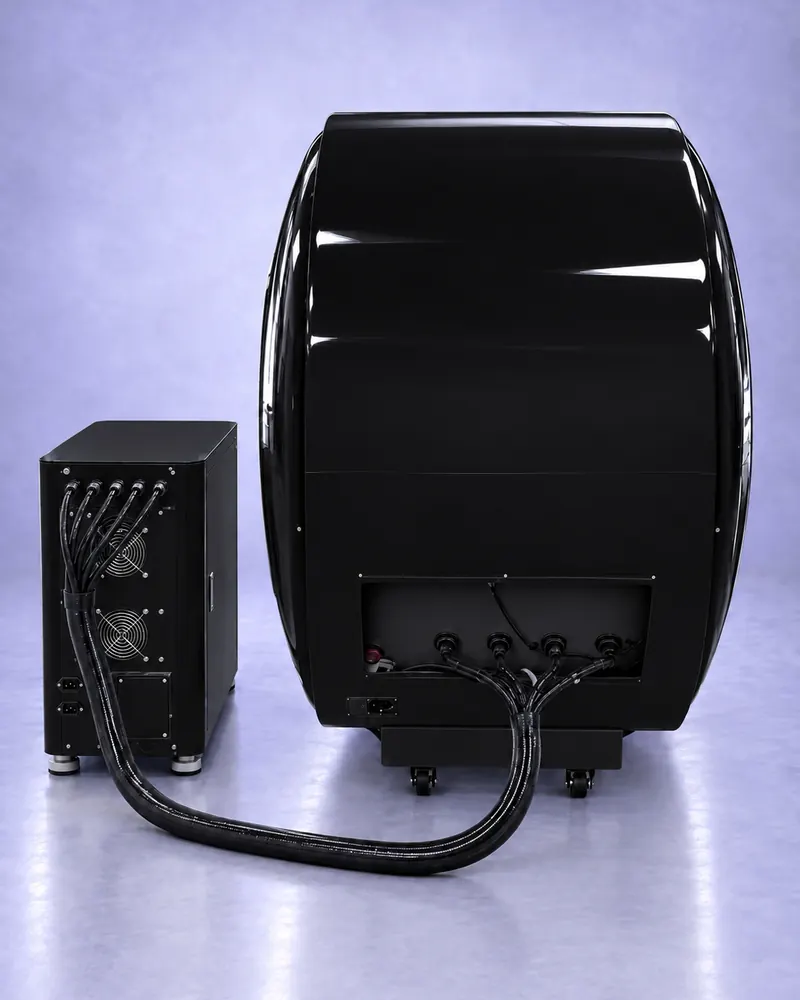

- 10L all-in-one main unitOxygen concentrator, air compressor and air conditioning in one cabinet.Standard
- Air conditioningIntegrated in the main unit.Standard
- Standard interior and sofaBase wall finish and seat. ORION COMPACT: built-in sofa with adjustable backrest.Standard
- Warm-white interior LEDInterior ambient lighting.Standard

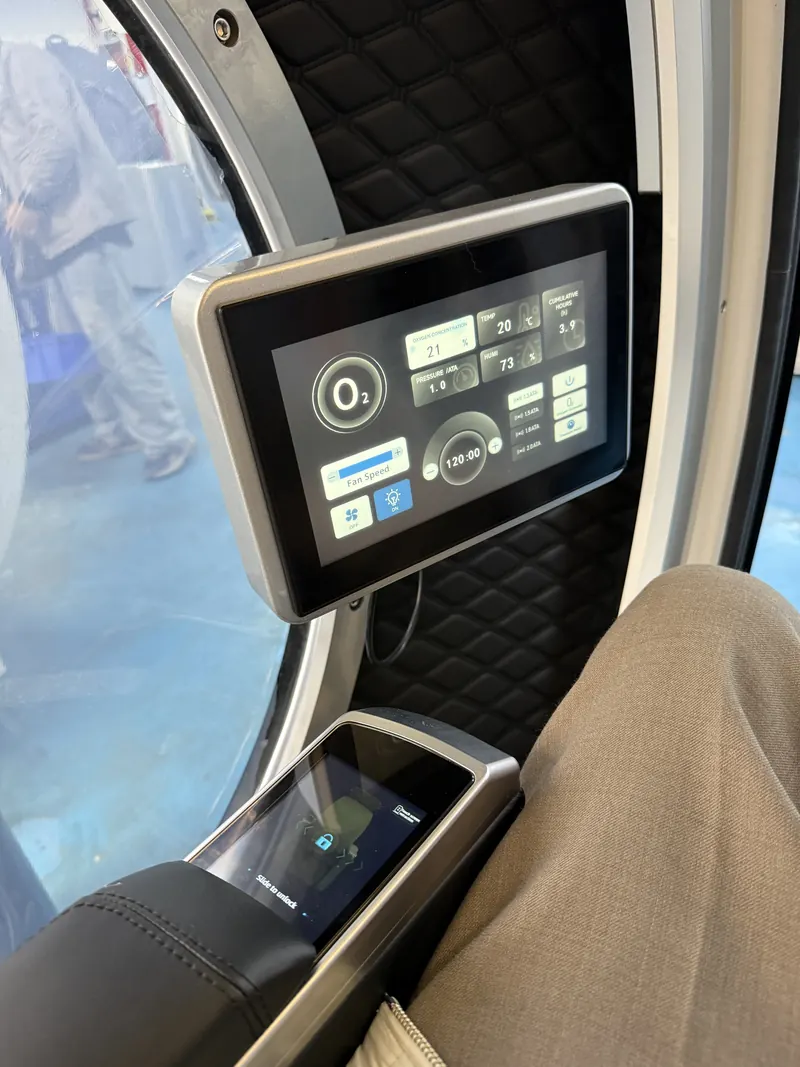

- Two touch control panelsOne inside, one outside.Standard
- Two intercom unitsOne inside, one outside.Standard
Available to add

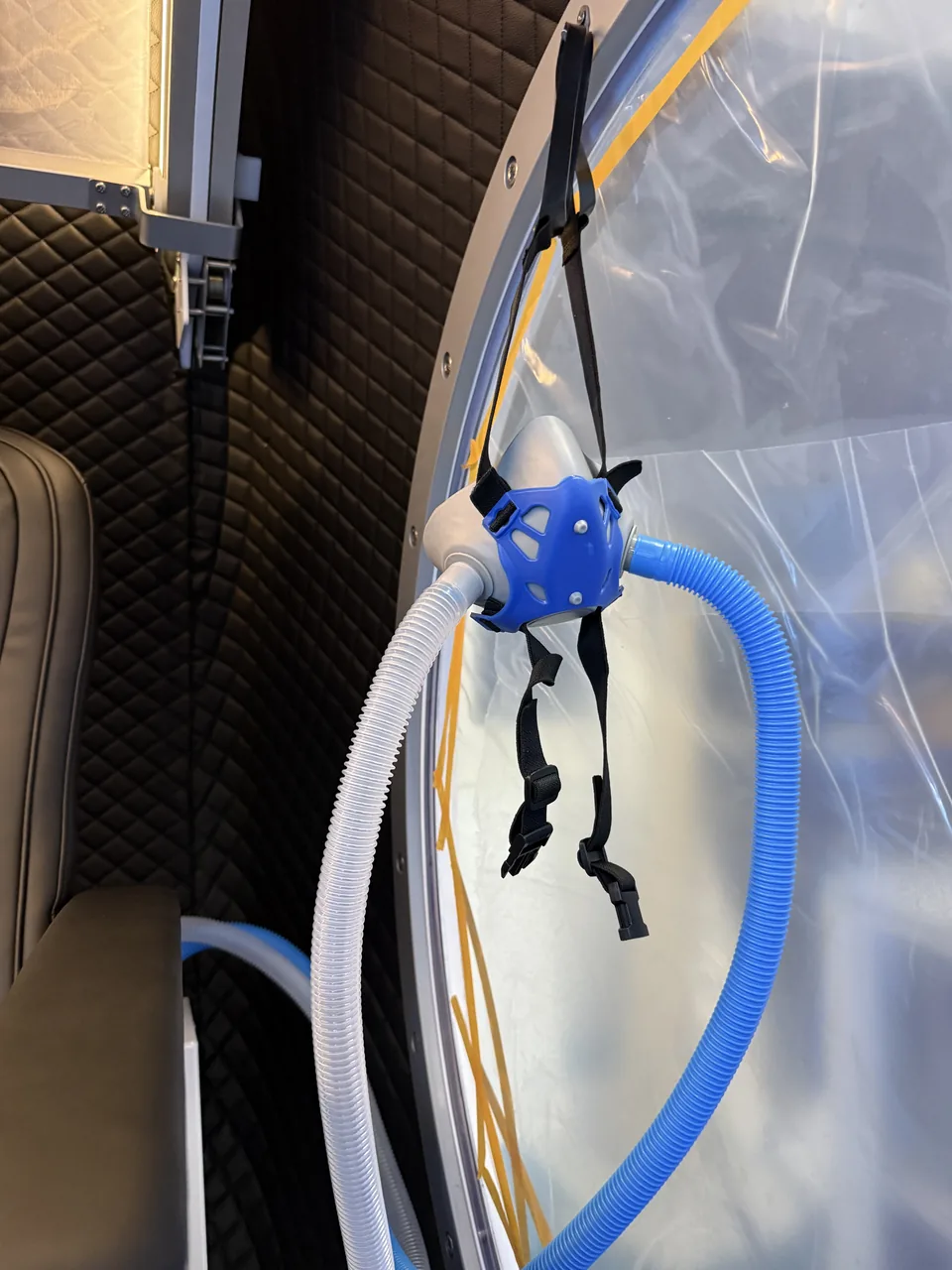

- 20L all-in-one + BIBSLarger main unit with a built-in breathing system and mask, replacing the 10L unit.Optional
- Single infrared panelOne LED infrared panel inside the chamber.Optional
- Dual infrared panels (head + foot)One panel at the head, one at the foot.Optional
- Three-panel infrared lightThree panels on an adjustable arm.Optional
- Pulse oximeterFingertip SpO₂ and pulse monitor.Optional
- Negative-ion unitSmall unit inside the cabin.Optional
- Seating upgradeNAPA massage sofa; LUMEN flagship NAPA sofa with folding desk; VISTA two-person sofa.Optional
- Folding tableFold-out surface on the chamber wall.Optional
- PEMF seat systemPulsed electromagnetic field mat built into the seat, with its own controller.Optional
- Plain entry stepStep in front of the door.Optional
- Illuminated entry stepStep with built-in lighting.Optional

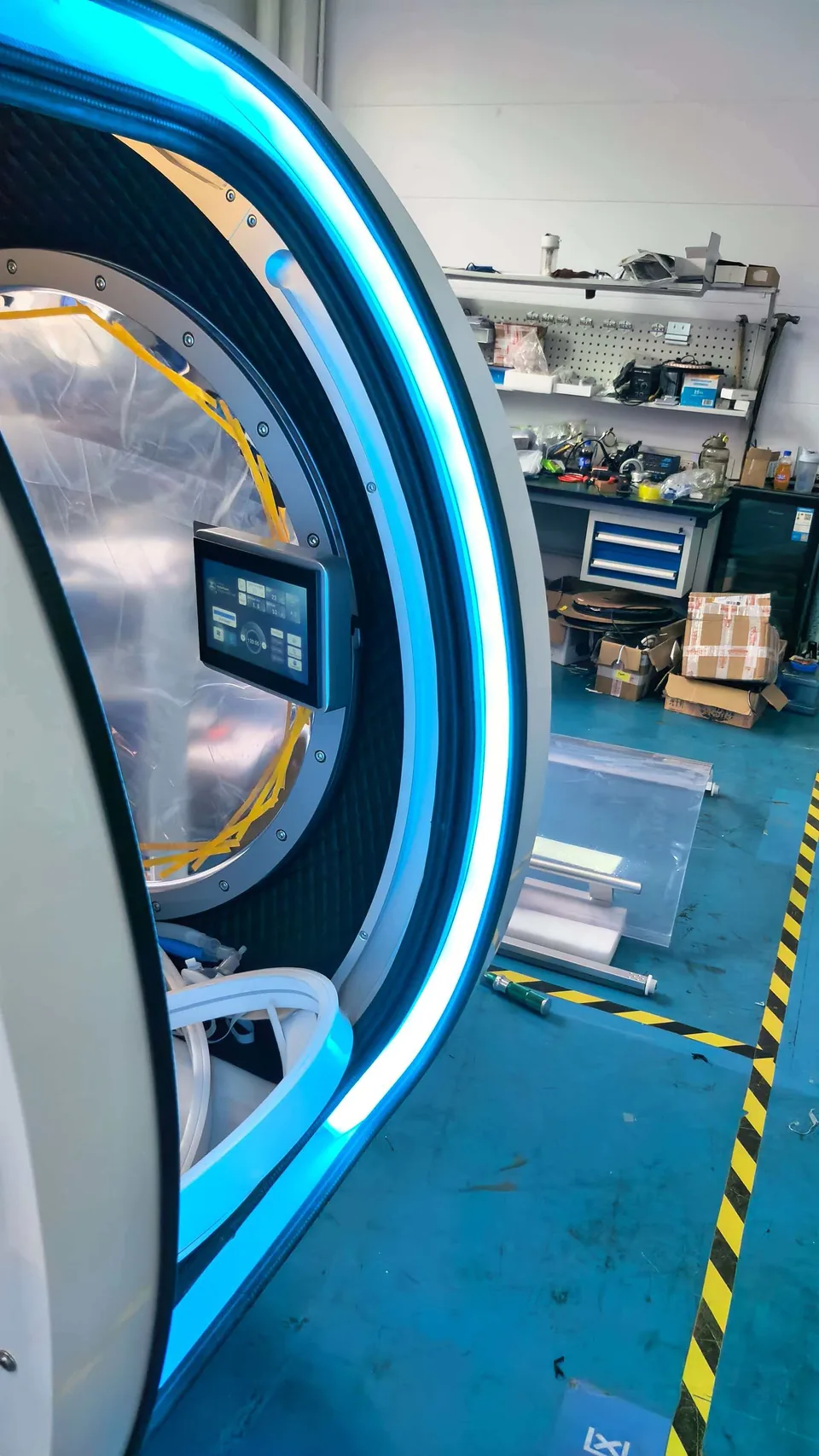

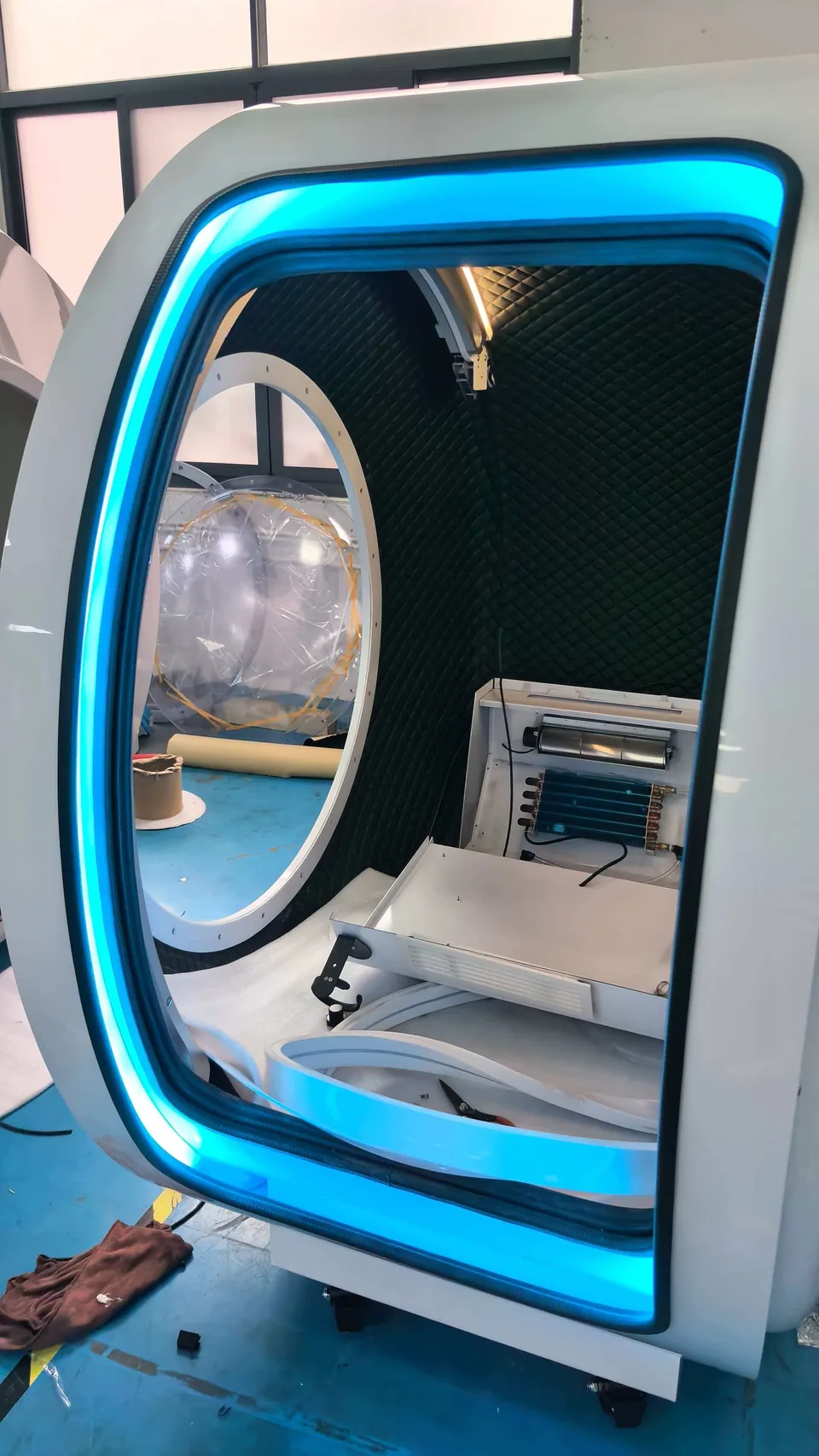

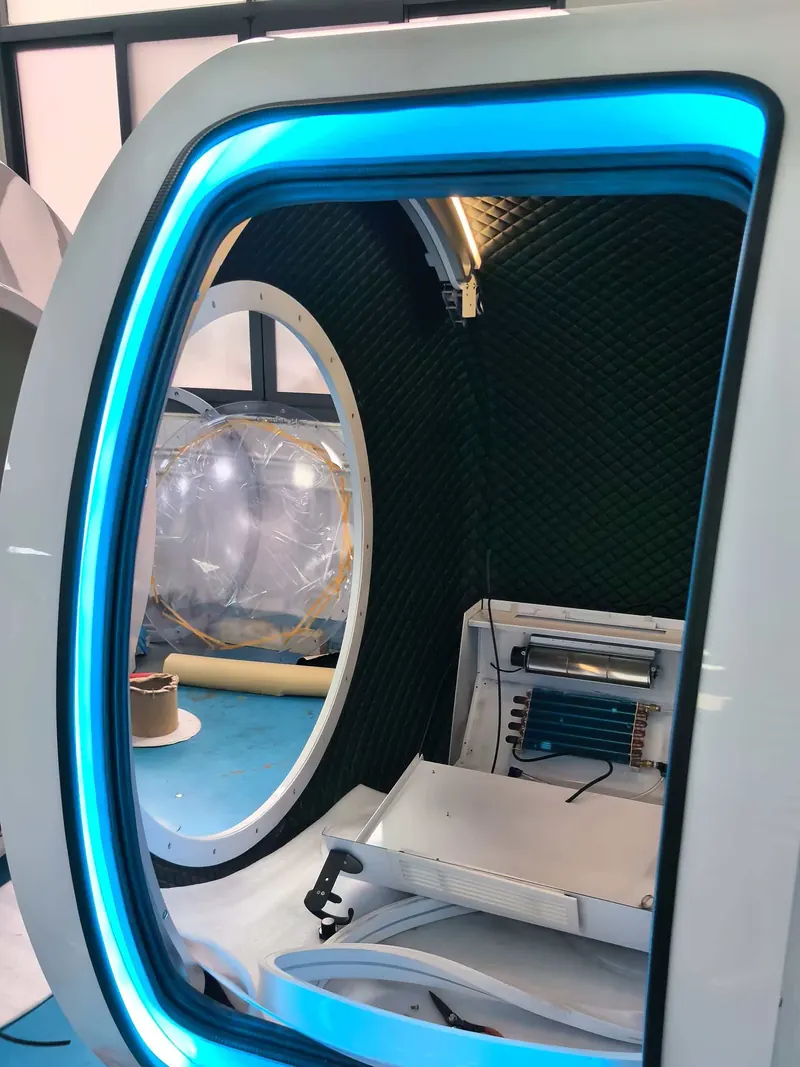

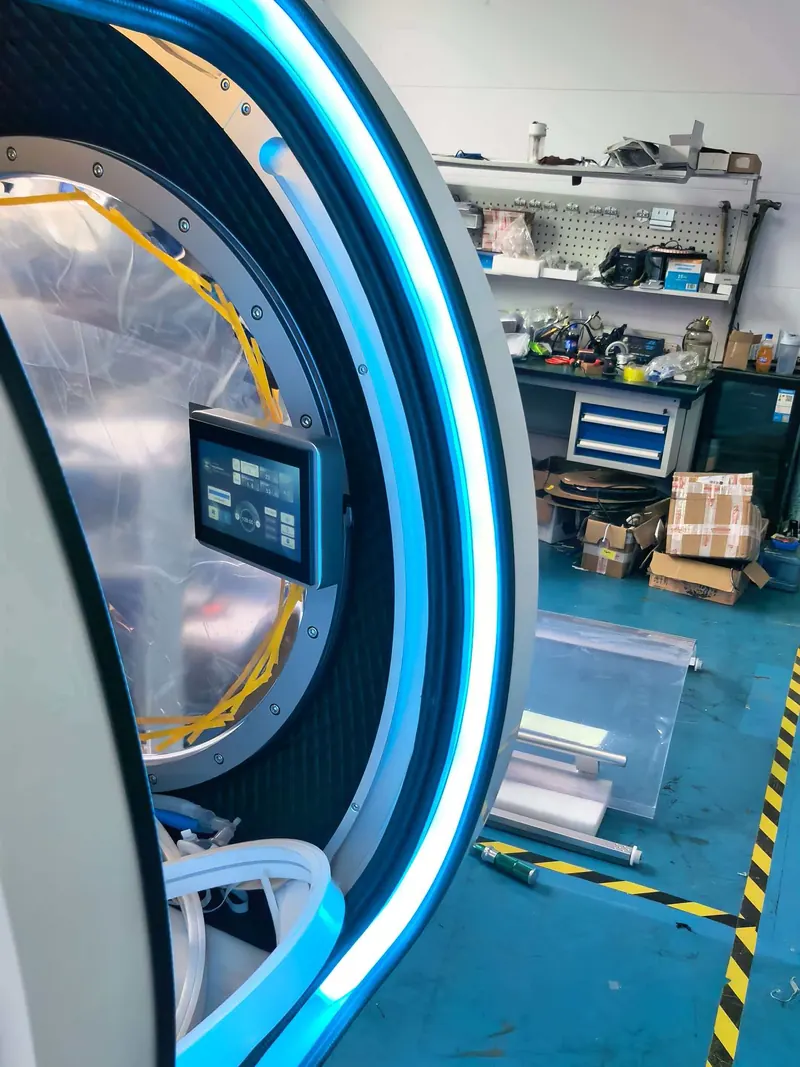

- Illuminated doorLED lighting built into the door frame — LUMEN and ORION each have their own design.Optional
- Leather wall lining · metal handle · aluminium strip · door position limiterInterior and exterior finish items; fit confirmed per model and order.On request
Options on video
Six add-ons, shell colours, wall finishes, seating and the LED light setups, shown with our chambers. Nothing loads until you press play.
Customize
Your LUMEN: shell colour, interior wall, seat.
Black, white, dark grey and light grey are the standard shell colours; any of the 216 RAL Classic colours can be ordered, and two-tone designs on request. Pick a colour below to preview it.
Colour preview
LUMEN in 4 colours, 6 views.
Lighting colour as shown; the illuminated door and step are options. Colour previews are digital recolours of the chamber; on-screen colours are approximate. Confirm the final colour with a physical RAL sample before ordering.
Interior walls
Wall finishes for LUMEN
Basic Wall (woven leather): 3 standard colours plus 24 woven colours. Luxury Leather Wall (padded leather, diamond quilting): 3 standard colours plus 10 quilted finishes.
See every wall colourSeating
Seats for LUMEN
Standard Chair (4 standard + 9 more eco cowhide colours), Upgraded Chair, NAPA Massage Chair (3 standard + 57 custom colours) and the Flagship NAPA Chair with fold-out desk.
See every seat and colourTechnical data
LUMEN specifications.
Approximate figures from the current model documentation (October 2026). Interior dimensions, clear door opening, main unit size and weight, and packed dimensions are confirmed per order.
- Operating pressure
- 2.0 ATA
- Occupancy
- 1 person, seated
- External size (L × W × H)
- 1,850 × 1,400 × 2,000 mmChamber only — allow space for the main unit, connections, door movement and service.
- Chamber weight
- ≈ 1,000 kgExcludes the main unit and packaging; the final configuration can affect weight.
- Narrowest documented width
- 770 mmcentral body, side modules removed. Body width, not a doorway clearance.
- Standard main unit

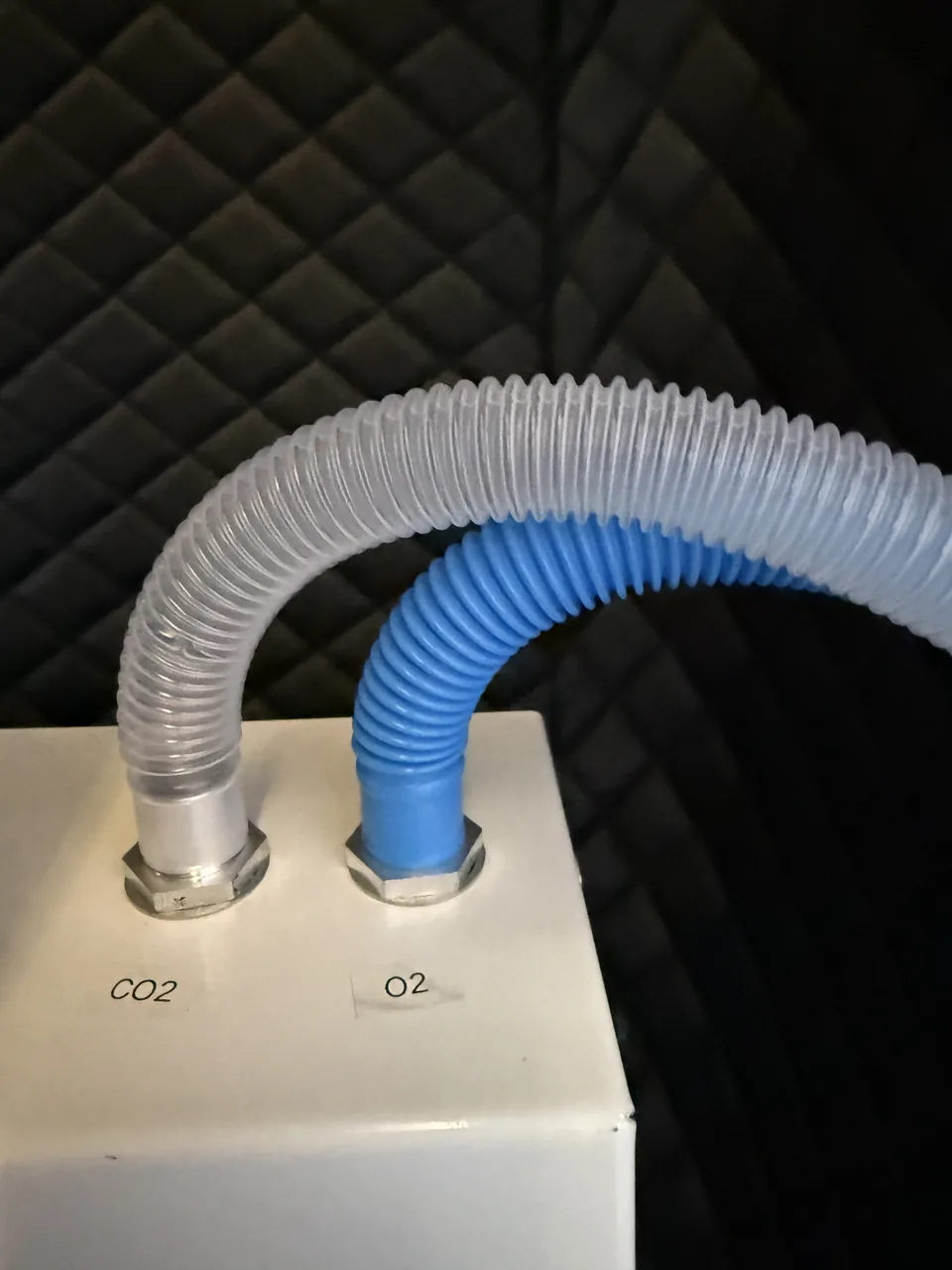

- 10L all-in-oneOxygen concentrator, air compressor and air conditioning in one cabinet.
- Optional main unit
- 20L all-in-one + BIBSTwo 10L concentrators, three compressors, built-in breathing system with mask.
- Oxygen supply concentration
- 93% ± 3%At the concentrator supply — not the oxygen level of the chamber air.
- Controls
- 2 touch panels + 2 intercoms, inside and outside
- Interior
- Warm-white LED · standard wall finish · standard sofa
- Standard exterior colours
- Black · White · Dark Grey · Light Grey
- Warranty
- 2 years (company policy)Scope, conditions and start date are set in your contract.
- Pressurization
- ≈ 15 min
- Depressurization from 2.0 ATA
- ≈ 12 min
- Noise
- ≈ 55 dB inside · ≈ 65 dB outside
Electrical
| System | Supply | Rated power | Current |
|---|---|---|---|
| 10L all-in-one (standard) | 110 V / 60 Hz | 2,000 W | 20 A |
| 10L all-in-one (standard) | 220 V / 50 Hz | 1,500 W | 8 A |
| 20L all-in-one + BIBS (optional) | 110 V / 60 Hz | 2,700 W | 25 A |
| 20L all-in-one + BIBS (optional) | 220 V / 50 Hz | 2,500 W | 13 A |
Values from the model documentation. Choose the version that matches your installation; a local electrician plans a dedicated circuit.
In the crate
Delivered with every LUMEN, besides the chamber, its all-in-one main unit and the options on your order.
Accessories
- 2 × oxygen masksStandard oxygen masks; the BIBS mask is part of the optional 20L system.
- 2 × headsetsTwo headsets, packed with every chamber.
- 2 × door sealsTwo door seals in the crate, so a replacement is on hand.
Documents
- Operation manualHow to run a session, the touch panels and the intercom.
- Product manualSpecifications, connections and the main unit.
- Maintenance manualChecks, consumables and how to replace the parts you can change yourself.
- Company profileWho we are and what we make.
LUMEN spec sheet, drawings and brochure
We send model documents to buyers directly rather than publishing them for download: the specification sheet, dimensioned drawings for your access route and the brochure, plus copies of the quality documents that cover your model and destination. Tell us the model and your country and the team sends them the same working day (China Standard Time).

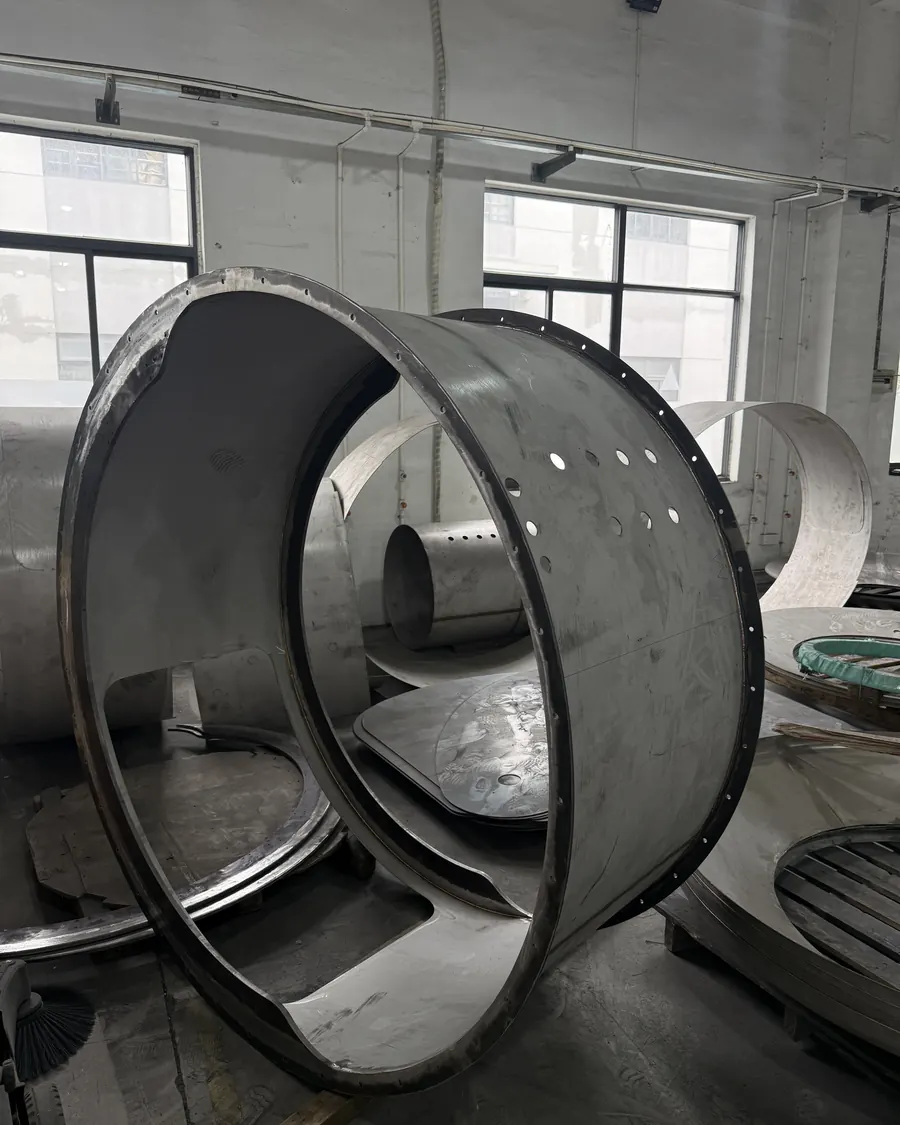

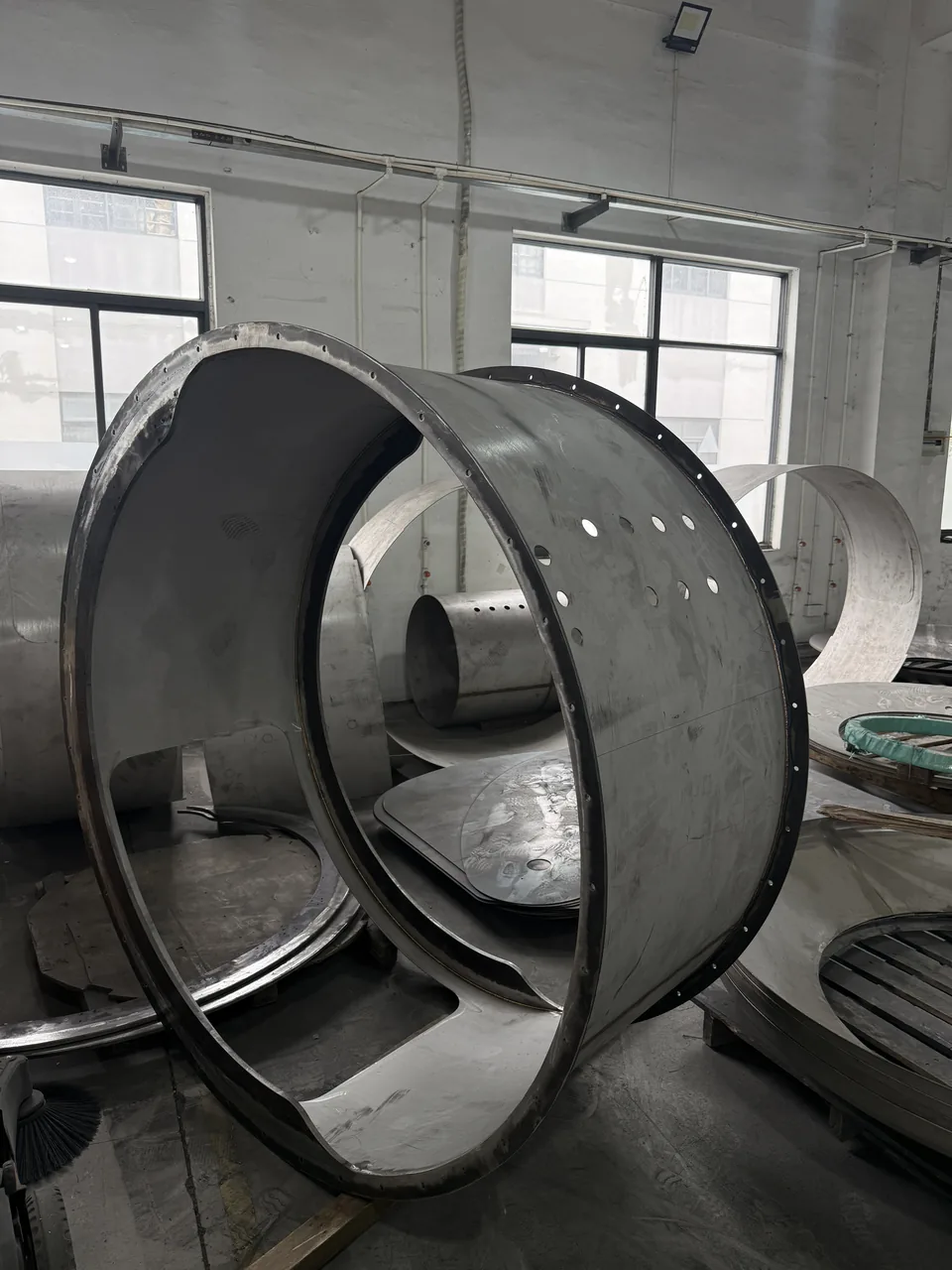

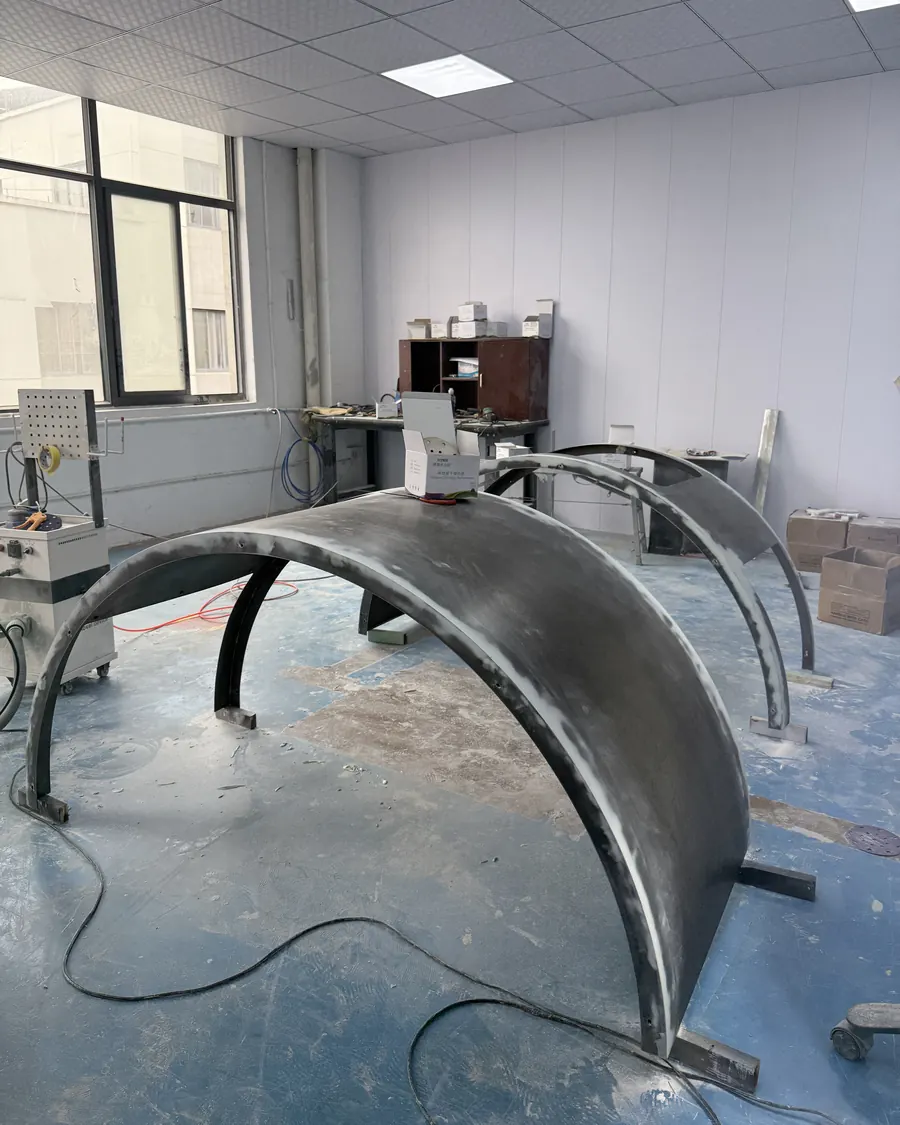

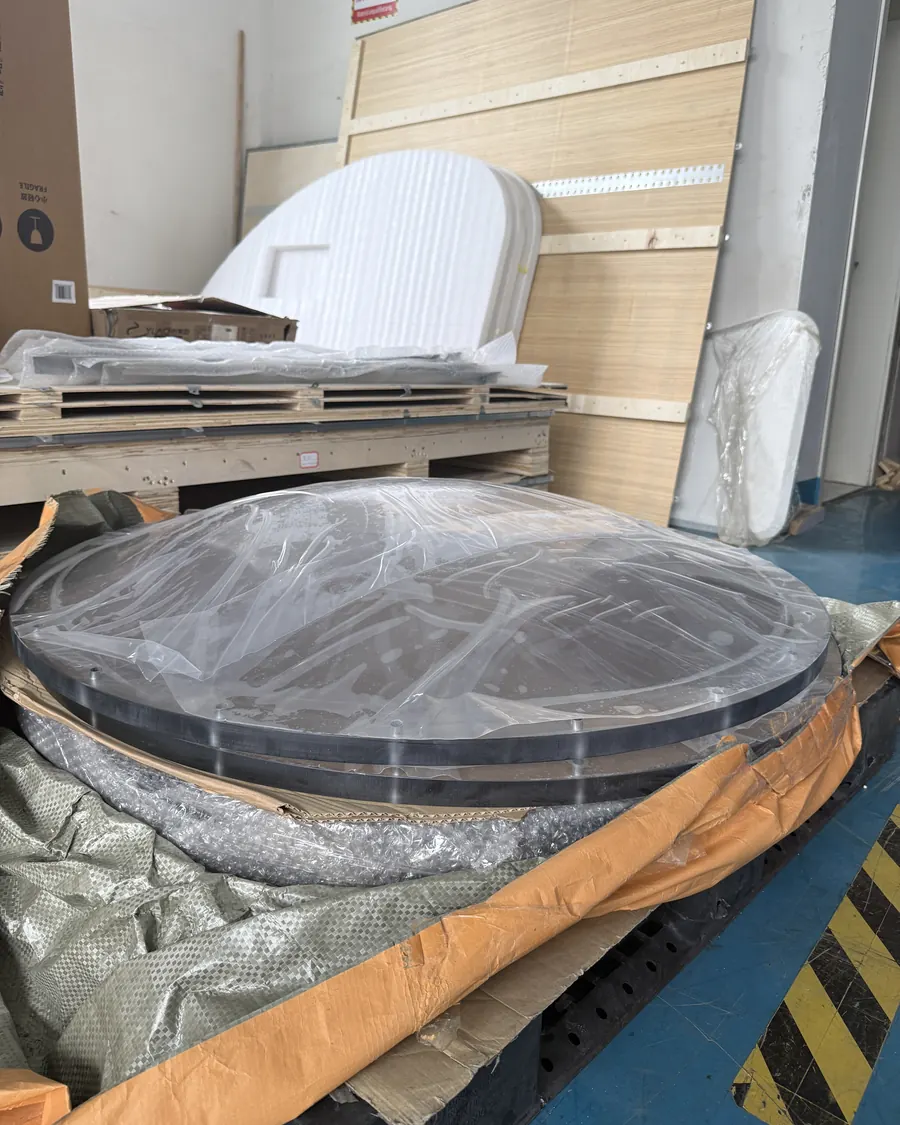

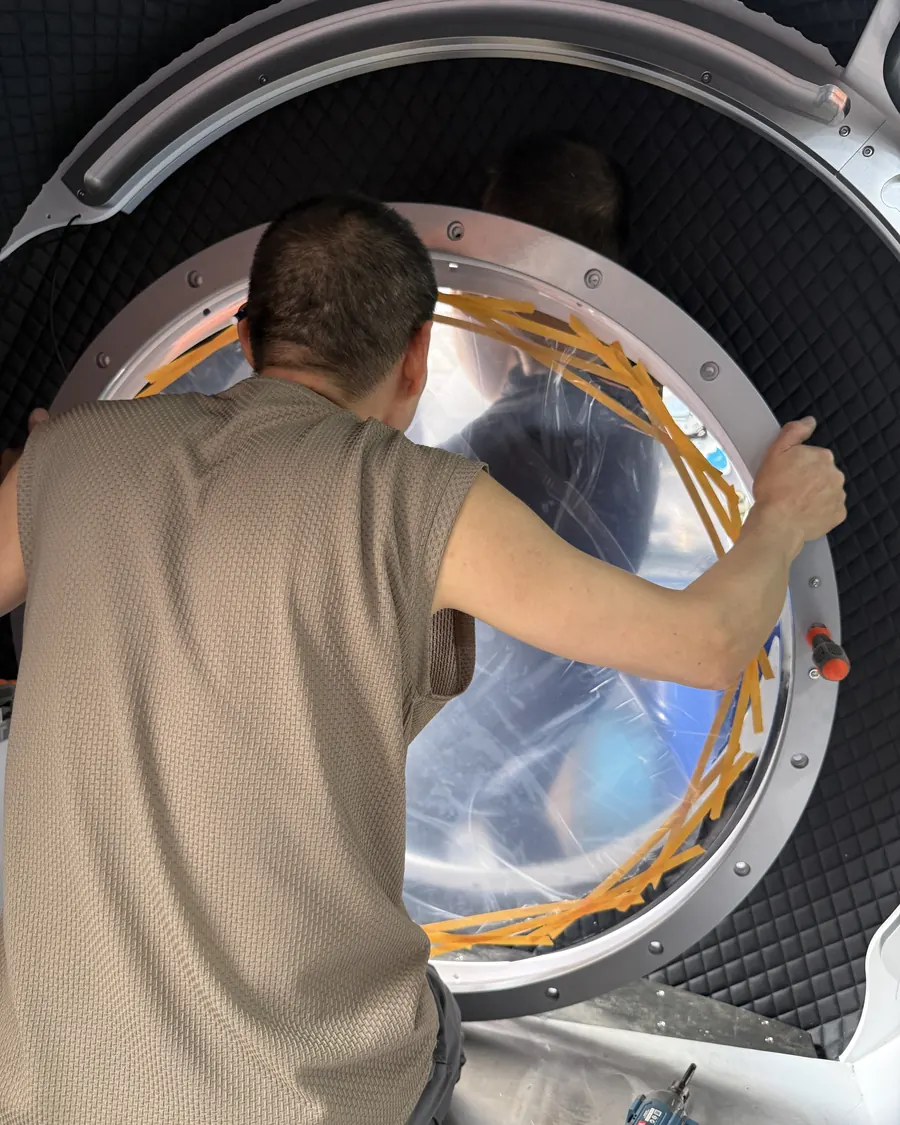

How it is made

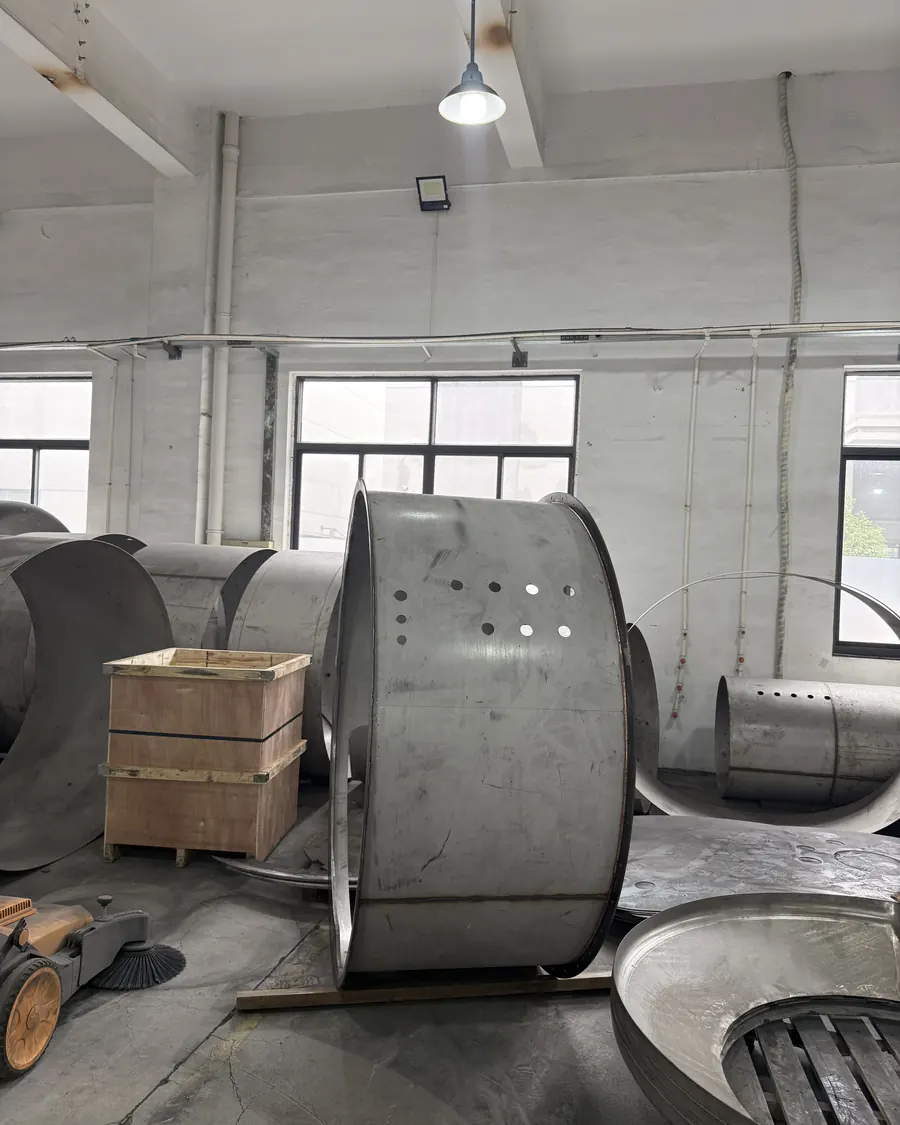

From steel shell to crated chamber.

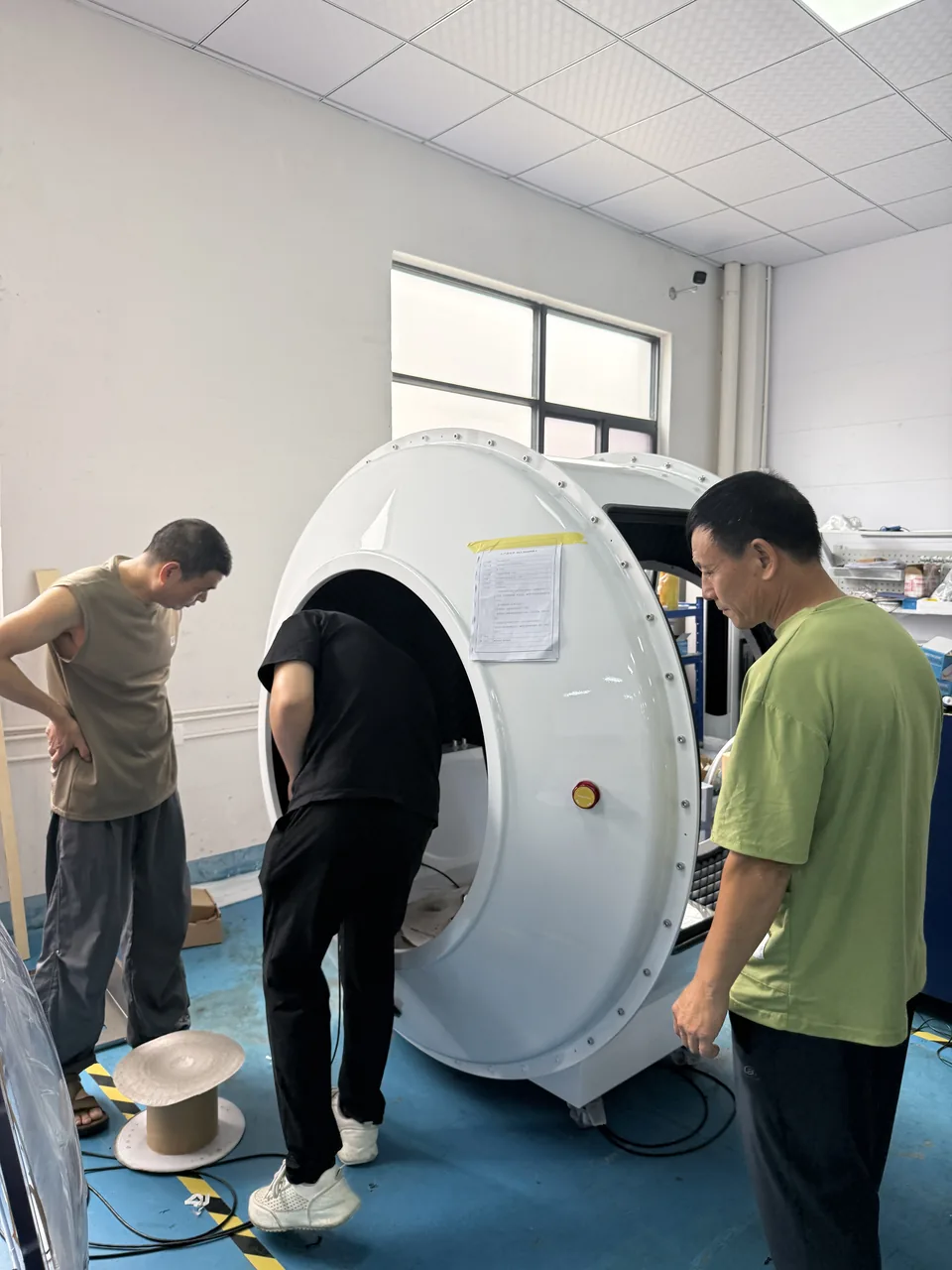

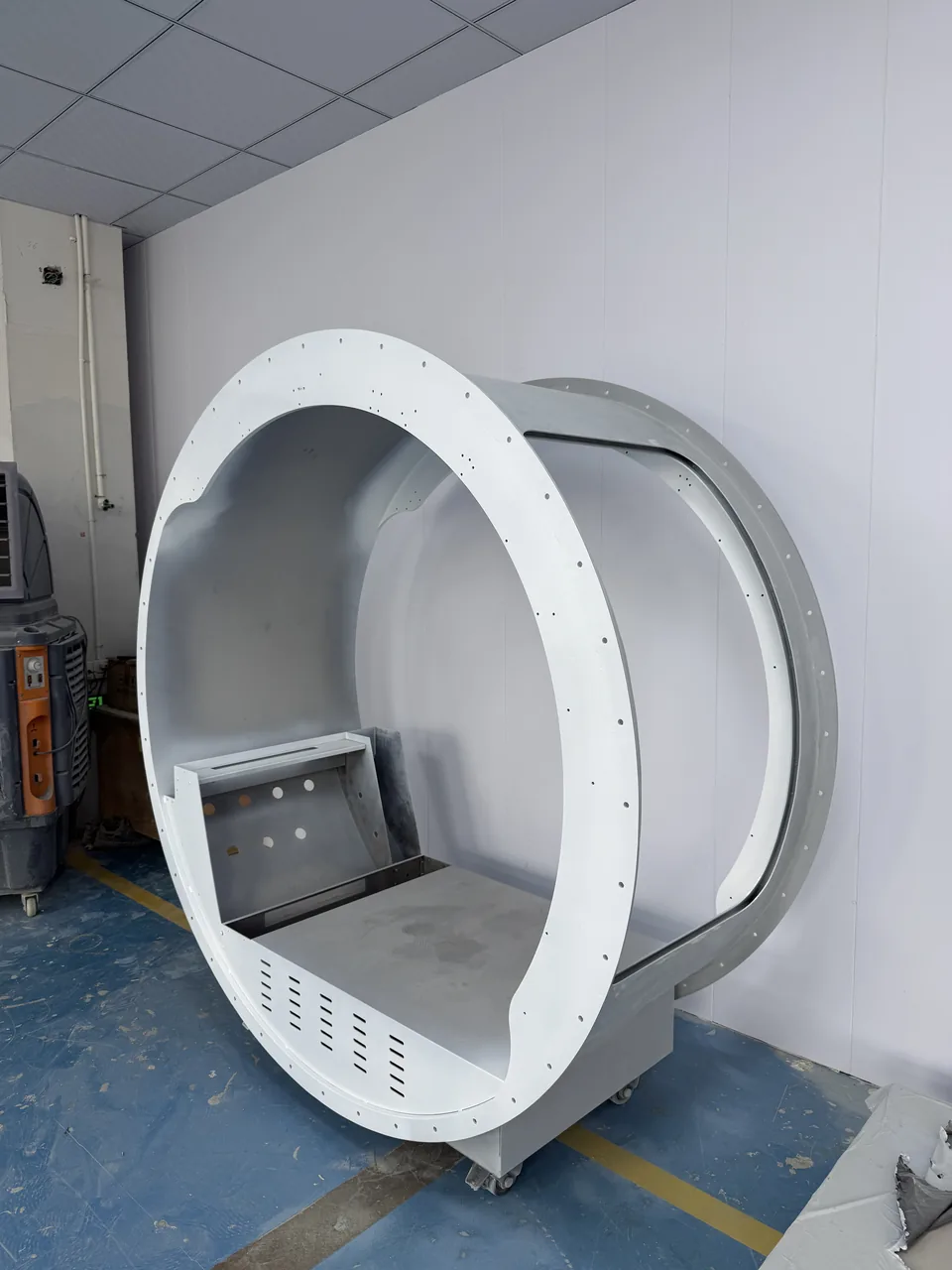

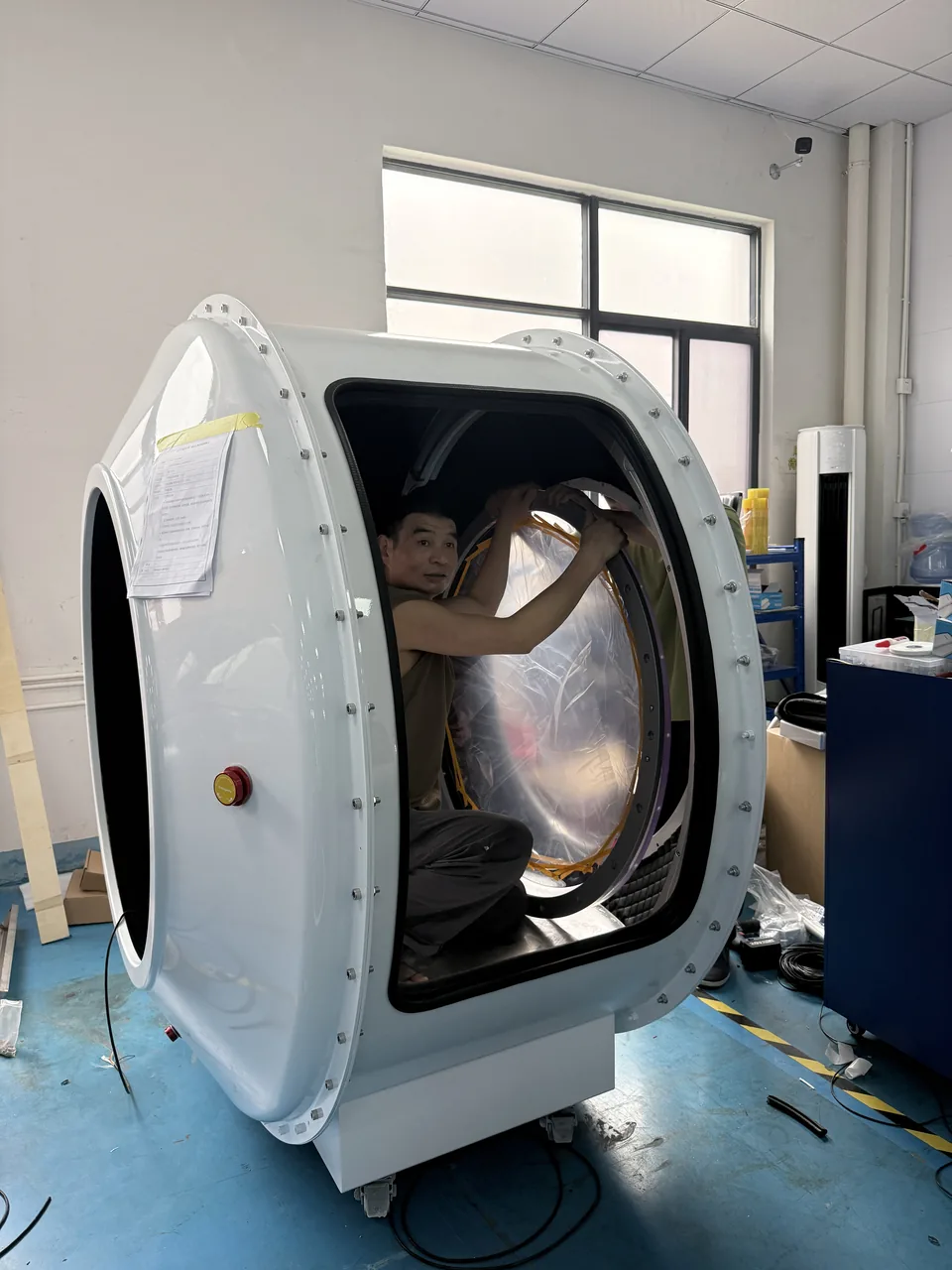

LUMEN photographed at each stage in our factory in Zhuji. Design, fabrication, welding, the main unit, controls, assembly and testing are handled by our own team.
🇦🇺 AustraliaCustomer delivery
Customer delivery
LUMEN delivered to Australia.
A white LUMEN with every option — negative-ion unit, 20L + BIBS, pulse oximeter, three-panel infrared, PEMF in the NAPA massage seat, folding table, illuminated door and illuminated step — crated at our factory, shipped to Australia and moved into a wellness centre in a period building.
See the delivery photos and videoFAQ
LUMEN questions.
More answers in the buyer guides and the FAQ.
Will LUMEN fit through my door?
The complete chamber is 1,400 mm wide. With both side modules removed, the central body is 770 mm wide. That is a body width, not a guaranteed clearance, so send us the narrowest openings, heights, turns, stairs and lifts on your route and our engineers review it before you order.
How is LUMEN delivered and reassembled?
LUMEN normally ships as a complete chamber in export crating, with its separate main unit. When the route requires it, the side modules are removed and refitted on site following a project-specific plan. You arrange the local team, or factory assembly can be agreed as a paid service.
What is the difference between LUMEN and VISTA?
Same external dimensions and the same 2.0 ATA platform. VISTA is one integrated body for one or two people; LUMEN is a single-person modular chamber whose side modules remove for narrow access, and it offers an illuminated door that VISTA does not. See the VISTA vs LUMEN guide.
Which features in the photos are standard?
Standard: the 10L all-in-one main unit with air conditioning, standard sofa and wall finish, warm-white interior LED, two touch panels and two intercoms. The 20L system with BIBS, infrared light, the flagship NAPA sofa, PEMF, pulse oximeter, negative-ion unit, illuminated door and entry step are optional.
What power supply does LUMEN need?
With the standard 10L all-in-one system: 2,000 W, 20 A at 110 V / 60 Hz, or 1,500 W, 8 A at 220 V / 50 Hz. With the optional 20L system and BIBS: 2,700 W, 25 A at 110 V, or 2,500 W, 13 A at 220 V. A local electrician plans a dedicated circuit. Electrical guide.
What does “93% ± 3%” oxygen mean?
It is the oxygen concentration at the concentrator supply. It is not the oxygen level of the air inside the pressurized chamber, and it is not a medical claim. Oxygen systems explained.
Is there a price list for LUMEN?
No. Each chamber is configured and shipped to a specific destination, so quotations are prepared per project and confirmed by our sales team.
Can I order LUMEN in my own colour or with my logo?
Black, white, dark grey and light grey are the standard shell colours; any of the 216 RAL Classic colours can be ordered, and two-tone designs on request. Your own logo is confirmed with your order; private-label (OEM / ODM) projects are welcome, including single units. See the colours, walls and seats.
What warranty and support come with LUMEN?
SkelundTech's company warranty policy is two years; scope, conditions and start date are set in your contract. Support is remote from the factory team — assembly drawings, guidance and after-sales help — and replacement parts are supplied free of charge; if you need them fast, you pay only the express freight. There are no local technicians at present.
